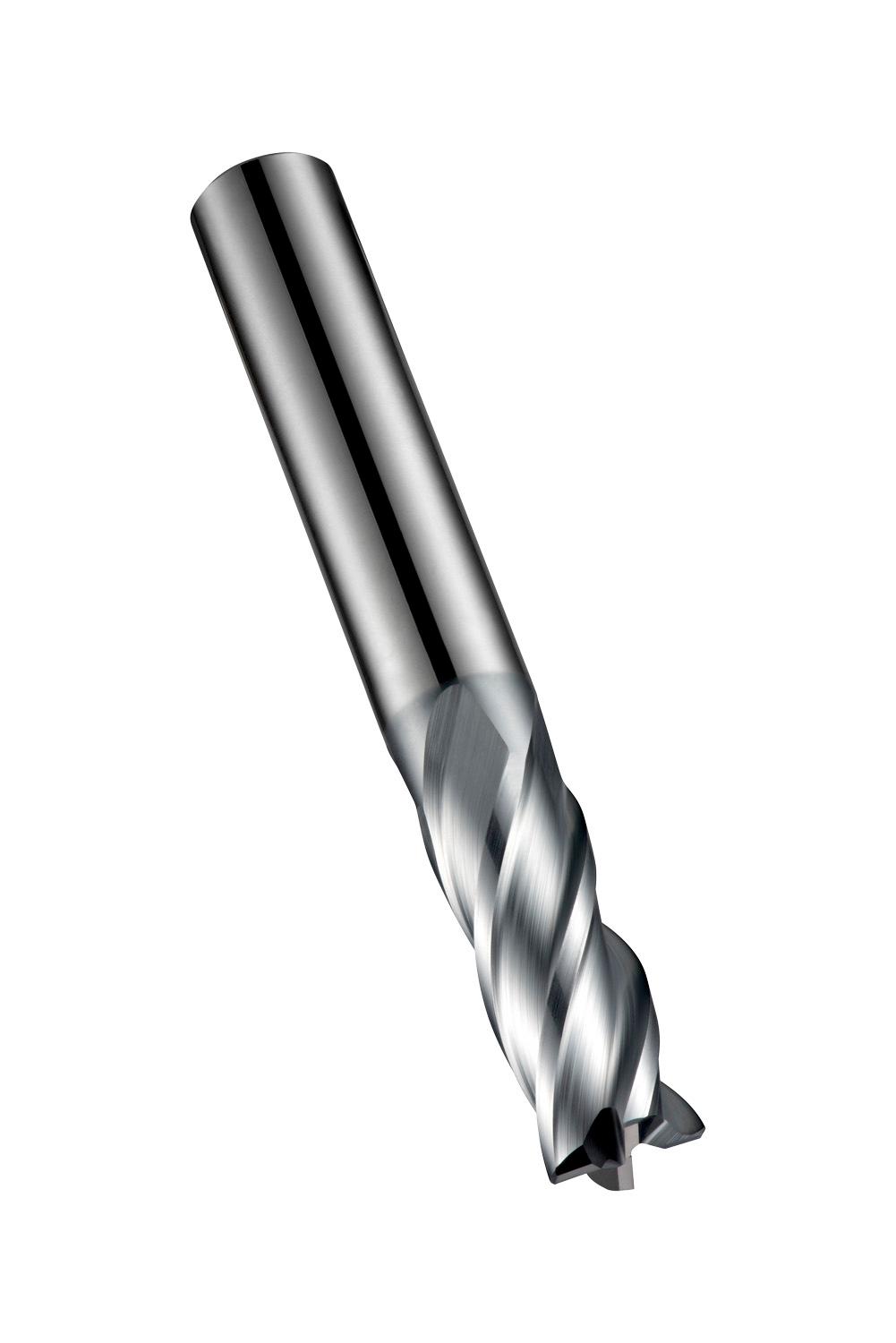

DORMER S814HA2.0 Carbide Cutters

Product Code: S814HA2.0

$79.88$72.62 Ex. GST

Product Code: S814HA2.0 SKU S814HA2.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Short series end mill with 4 flutes, diameter 2mm with 7mm length of cut and 57mm overall length, according to DIN 6527 L standard with a 6mm plain shank, solid carbide with AlCrN coating, 34° helix and 9° rake angle for shoulder milling and plunging in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and copper or copper alloys

Additional information

Weight 0.0776 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760642504
Product number (SAP): 86020253
Ordering code ANSI: S814HA2.0
Gross weight – grams: 25.9
Cutting diameter – millimeter (DC): 2 mm
Corner chamfer width – millimeter (CHW): 0 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 7 mm
Overall length – millimeter (OAL): 57 mm
Flute count (NOF): 4
Radial rake angle (GAMF): 9
ISO: S814HA2.0

Brand

DORMER
