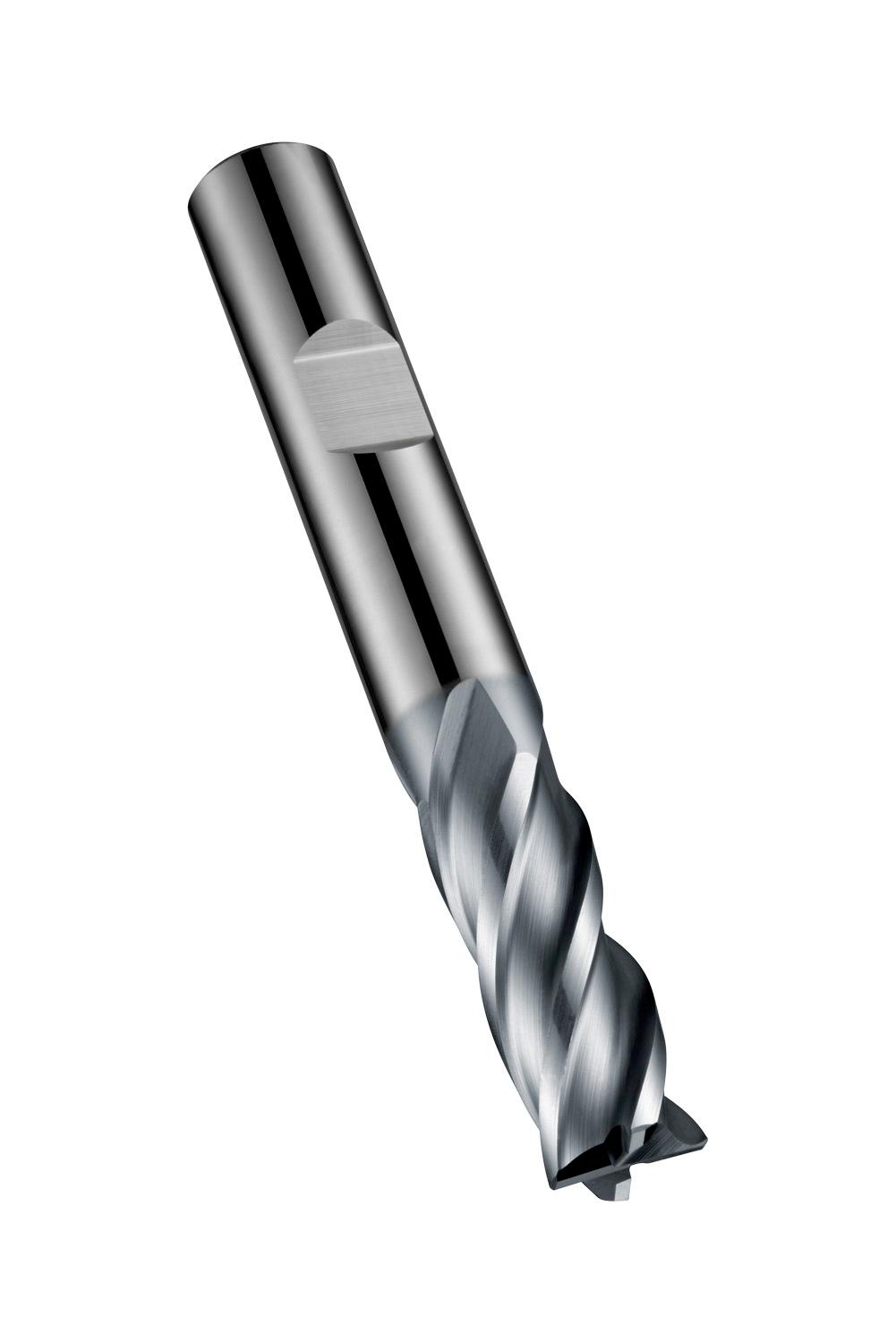

DORMER S814HB12.0 Carbide Cutters

Product Code: S814HB12.0

$236.80$215.27 Ex. GST

Product Code: S814HB12.0 SKU S814HB12.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Short series end mill with 4 flutes, diameter 12mm with 26mm length of cut, 83mm overall length and 0.2mm 45° chamfered corner edges, according to DIN 6527 L standard with a 12mm Weldon shank, solid carbide with AlCrN coating, 34° helix and 9° rake angle for shoulder milling and plunging in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and copper or copper alloys

Additional information

Weight 0.2299 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760642689
Product number (SAP): 86020262
Ordering code ANSI: S814HB12.0
Gross weight – grams: 125.4
Cutting diameter – millimeter (DC): 12 mm
Corner chamfer width – millimeter (CHW): 0.2 mm
Connection diameter – millimeter (DCON MS): 12 mm
Depth of cut maximum – millimeter (APMX): 26 mm
Overall length – millimeter (OAL): 83 mm
Flute count (NOF): 4
Radial rake angle (GAMF): 9
ISO: S814HB12.0

Brand

DORMER
