DORMER S8222.0 Carbide Cutters

Product Code: S8222.0

$74.78$67.98 Ex. GST

Product Code: S8222.0 SKU S8222.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

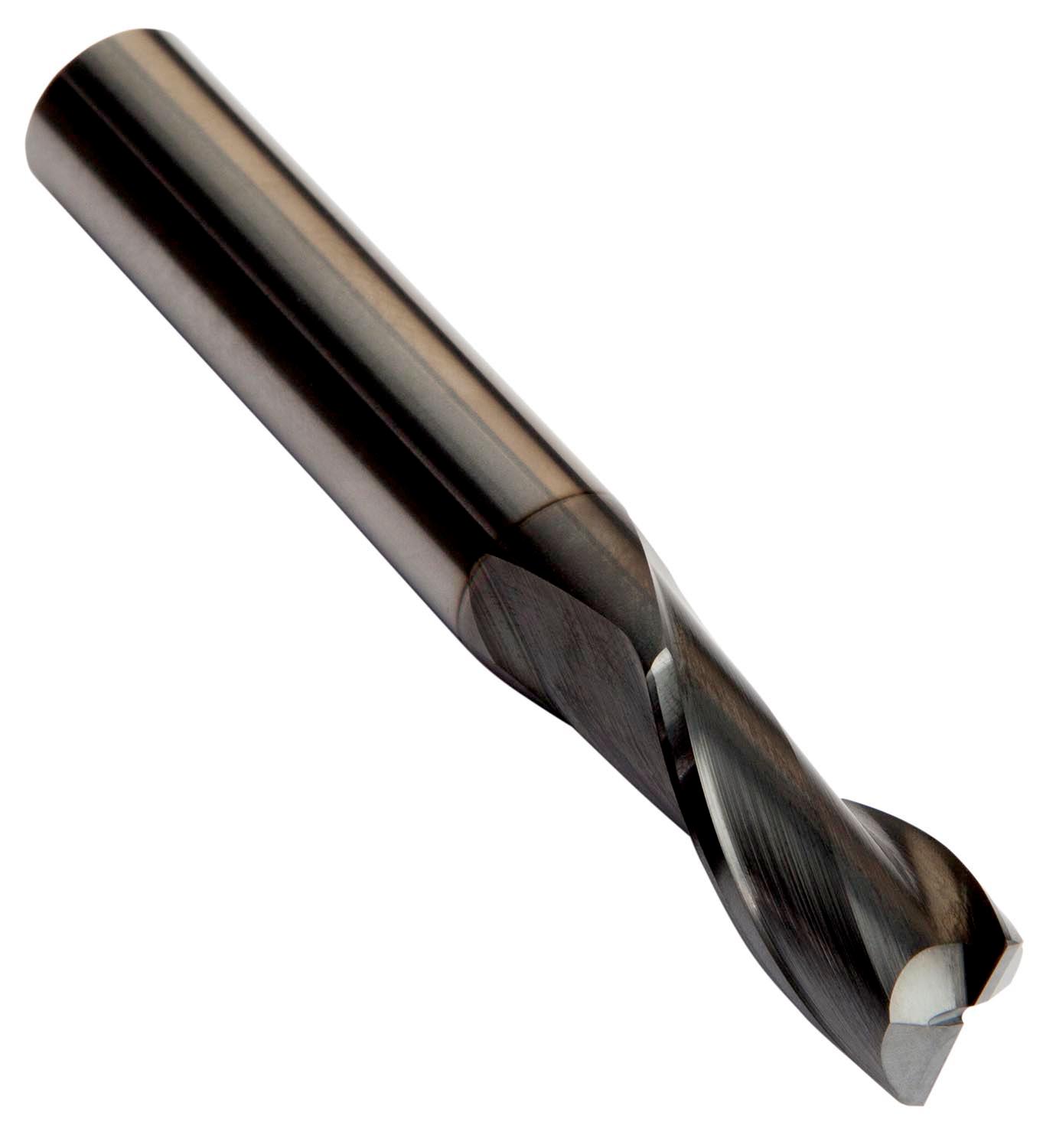

Regular length slot drill with 2 flutes, diameter 2mm with 8mm length of cut and 57mm overall length, according to DORMER standard with a 6mm plain shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for slot milling and ramping in steel and cast steel, stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys

Additional information

Weight 0.0726 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760698433
Product number (SAP): 86031181
Ordering code ANSI: S8222.0
Gross weight – grams: 25
Cutting diameter – millimeter (DC): 2 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 8 mm
Overall length – millimeter (OAL): 57 mm
Flute count (NOF): 2
Radial rake angle (GAMF): 9
With Neck: Yes
ISO: S8222.0

Brand

DORMER
