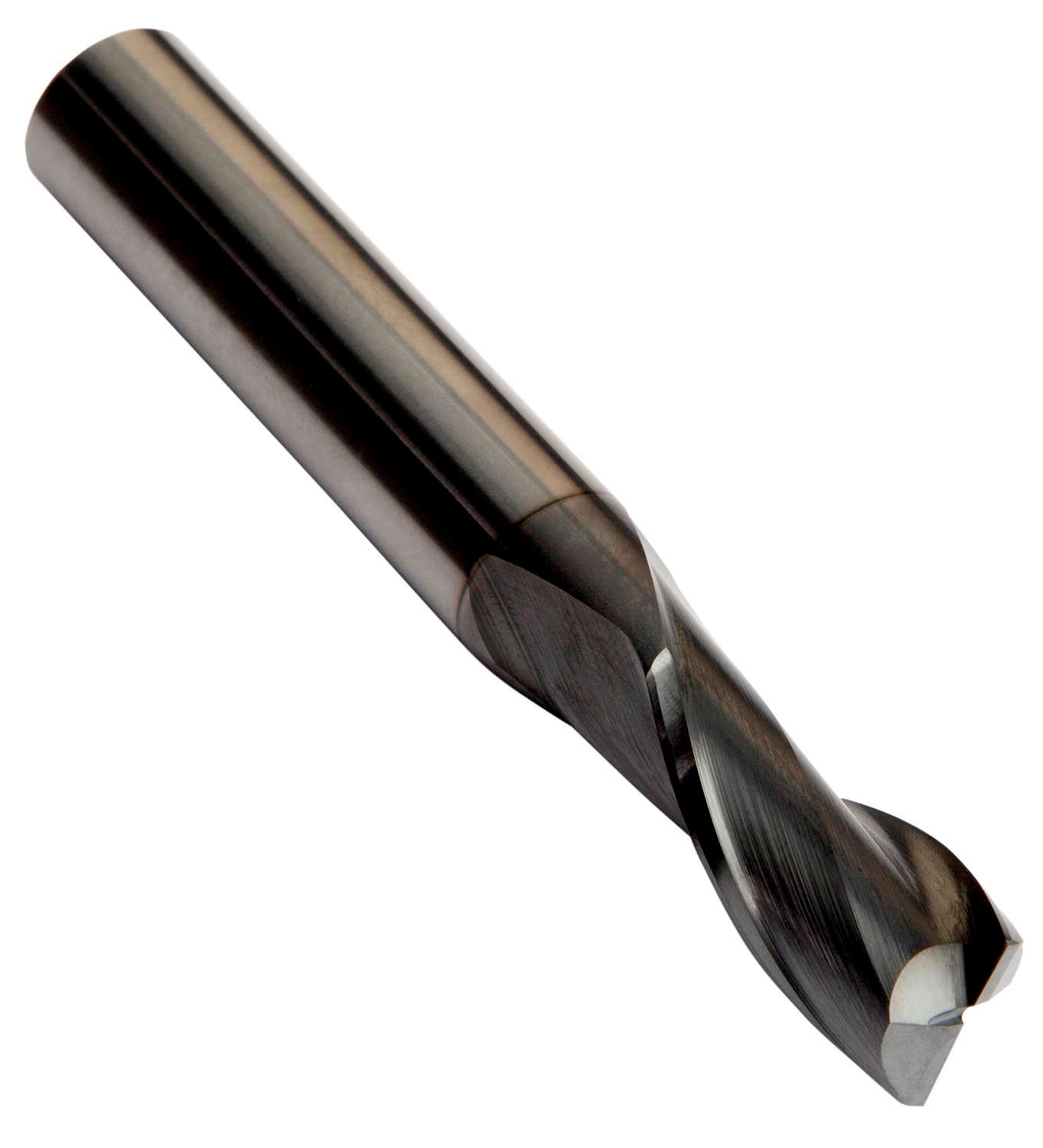

DORMER S8226.0 Carbide Cutters

Product Code: S8226.0

$82.71$75.19 Ex. GST

Product Code: S8226.0 SKU S8226.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Regular length slot drill with 2 flutes, diameter 6mm with 19mm length of cut, 57mm overall length and 0.13mm 45° chamfered corner edges, according to DORMER standard with a 6mm plain shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for slot milling and ramping in steel and cast steel, stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys

Additional information

Weight 0.0803 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760698488
Product number (SAP): 86031194
Ordering code ANSI: S8226.0
Gross weight – grams: 26
Cutting diameter – millimeter (DC): 6 mm
Corner chamfer width – millimeter (CHW): 0.13 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 19 mm
Overall length – millimeter (OAL): 57 mm
Flute count (NOF): 2
Radial rake angle (GAMF): 9
ISO: S8226.0

Brand

DORMER
