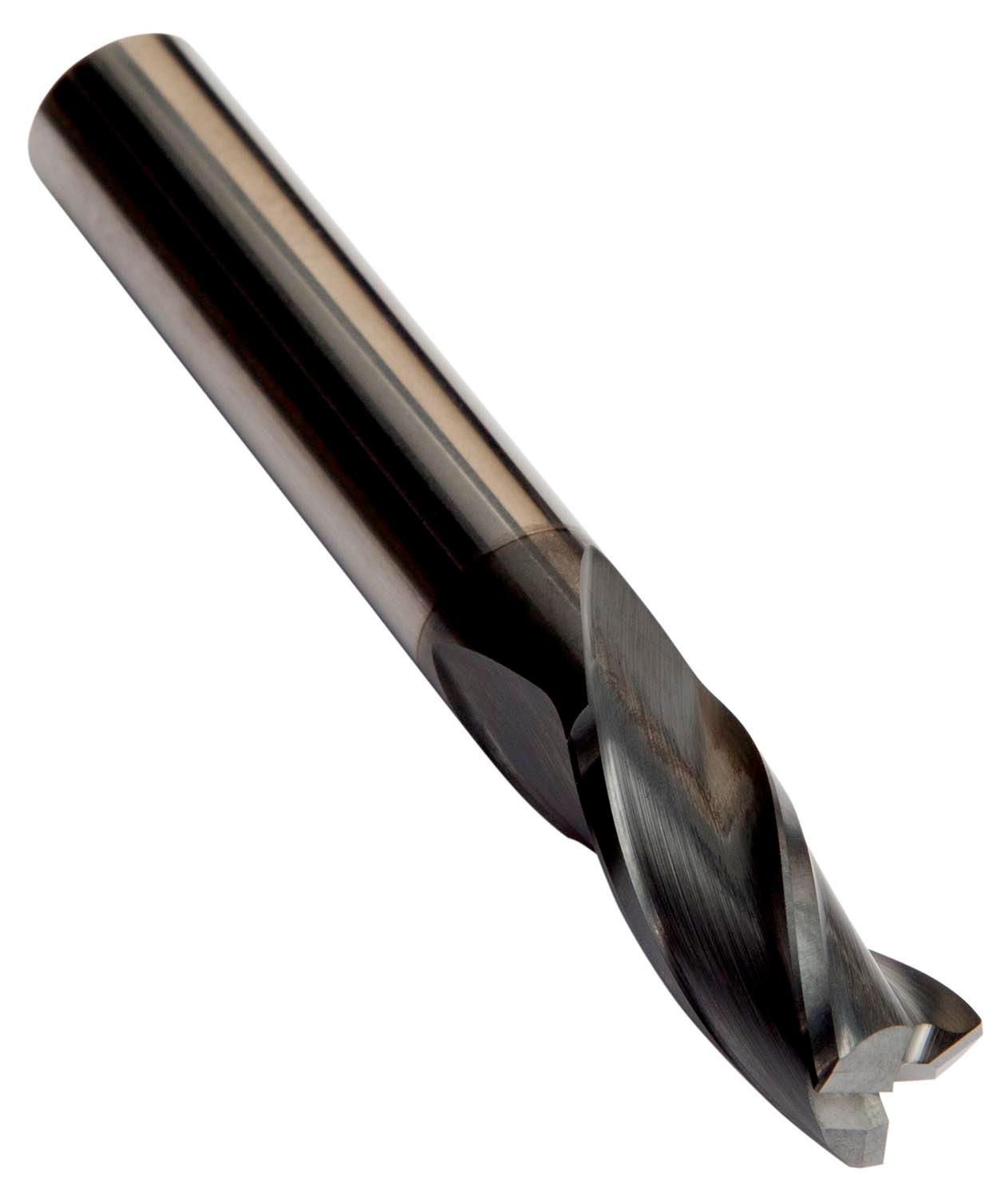

DORMER S82312.0 Carbide Cutters

Product Code: S82312.0

$215.27$195.70 Ex. GST

Product Code: S82312.0 SKU S82312.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Regular length slot drill with 3 flutes, diameter 12mm with 25mm length of cut, 83mm overall length and 0.2mm 45° chamfered corner edges, according to DORMER standard with a 12mm plain shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and cast aluminium and copper or copper alloys

Additional information

Weight 0.2090 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760698686
Product number (SAP): 86031205
Ordering code ANSI: S82312.0
Gross weight – grams: 124
Cutting diameter – millimeter (DC): 12 mm
Corner chamfer width – millimeter (CHW): 0.2 mm
Connection diameter – millimeter (DCON MS): 12 mm
Depth of cut maximum – millimeter (APMX): 25 mm
Overall length – millimeter (OAL): 83 mm
Flute count (NOF): 3
Radial rake angle (GAMF): 9
ISO: S82312.0

Brand

DORMER
