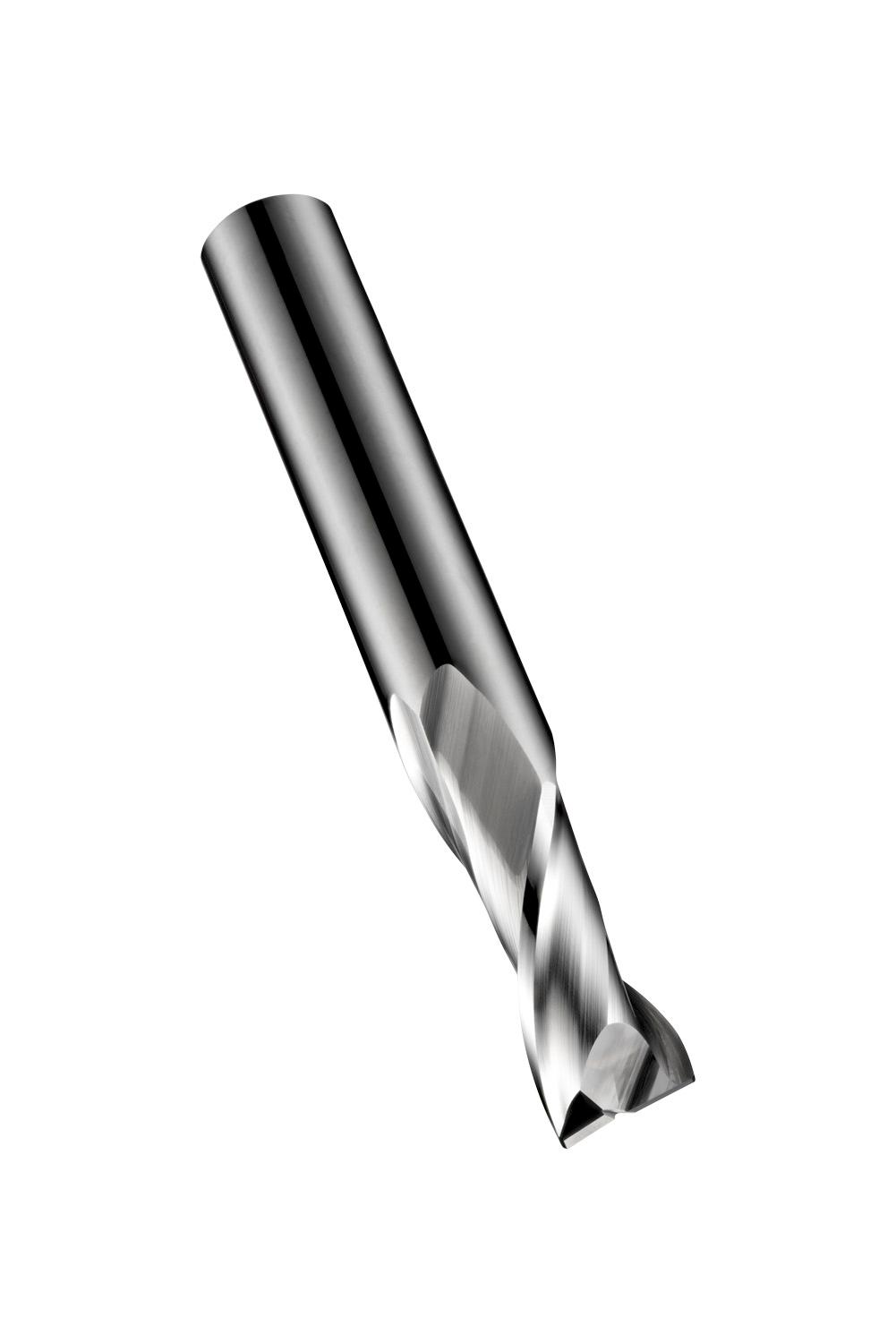

DORMER S9023.0 Carbide Cutters

Product Code: S9023.0

$41.47$37.70 Ex. GST

Product Code: S9023.0 SKU S9023.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Regular length end mill with 2 flutes, diameter 3mm with 12mm length of cut, 38mm overall length and 0.08mm 45° chamfered corner edges, according to DORMER standard with a 3mm plain shank, solid carbide with bright finish, 30° helix and 12° rake angle for slot milling in free machining, plain carbon and alloy steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys

Additional information

Weight 0.0403 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760132869
Product number (SAP): 86020280
Ordering code ANSI: S9023.0
Gross weight – grams: 6.7
Cutting diameter – millimeter (DC): 3 mm
Corner chamfer width – millimeter (CHW): 0.08 mm
Connection diameter – millimeter (DCON MS): 3 mm
Depth of cut maximum – millimeter (APMX): 12 mm
Overall length – millimeter (OAL): 38 mm
Flute count (NOF): 2
Radial rake angle (GAMF): 12
ISO: S9023.0

Brand

DORMER
