DORMER S90312.0 Carbide Cutters

Product Code: S90312.0

$123.50$112.27 Ex. GST

Product Code: S90312.0 SKU S90312.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

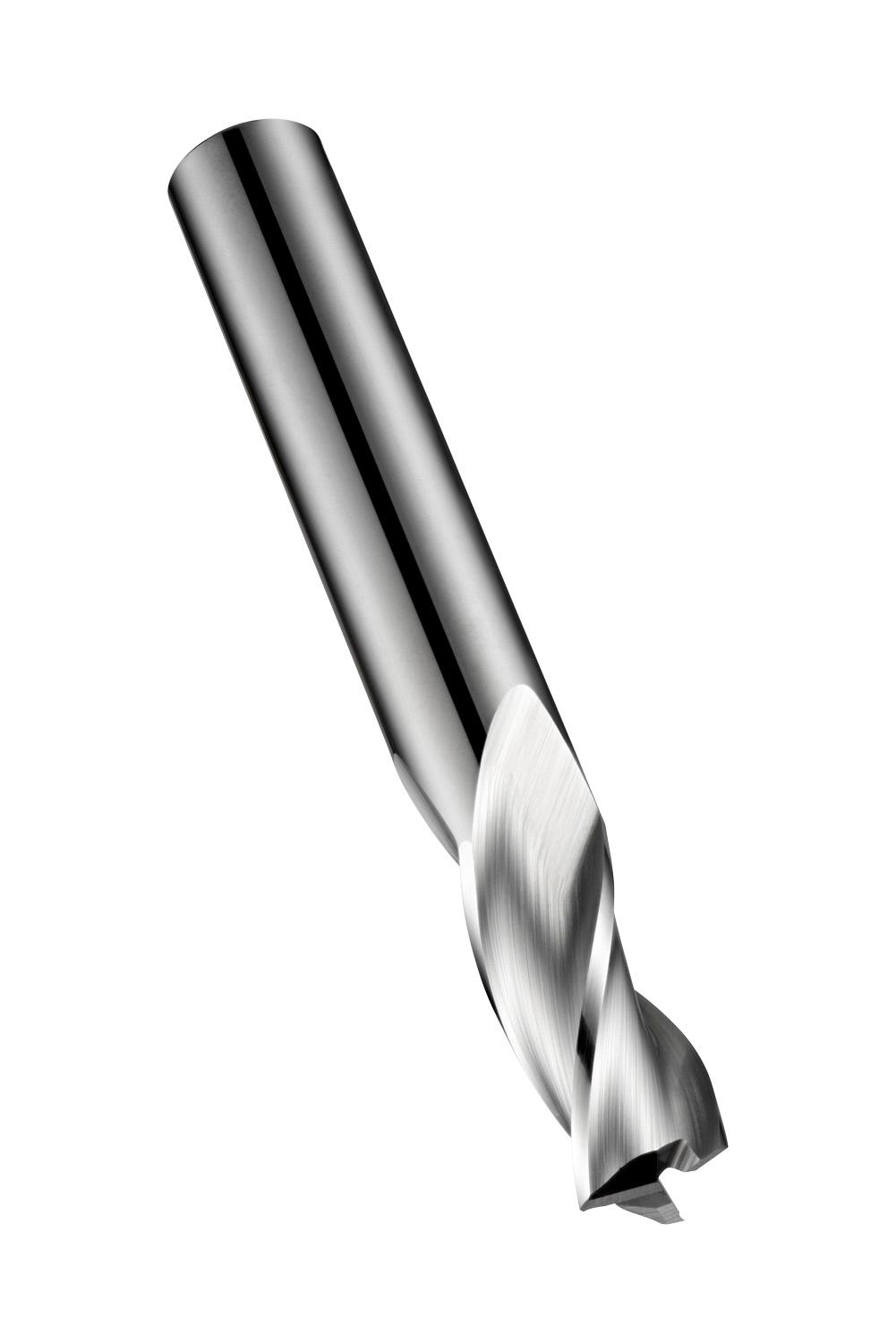

Regular length end mill with 3 flutes, diameter 12mm with 25mm length of cut, 73mm overall length and 0.2mm 45° chamfered corner edges, according to DORMER standard with a 12mm plain shank, solid carbide with bright finish, 30° helix and 12° rake angle for shoulder milling and slot milling in free machining, plain carbon and alloy steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys

Additional information

Weight 0.1199 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760132944
Product number (SAP): 86020288
Ordering code ANSI: S90312.0
Gross weight – grams: 105.9
Cutting diameter – millimeter (DC): 12 mm
Corner chamfer width – millimeter (CHW): 0.2 mm
Connection diameter – millimeter (DCON MS): 12 mm
Depth of cut maximum – millimeter (APMX): 25 mm
Overall length – millimeter (OAL): 73 mm
Flute count (NOF): 3
Radial rake angle (GAMF): 12
ISO: S90312.0

Brand

DORMER
