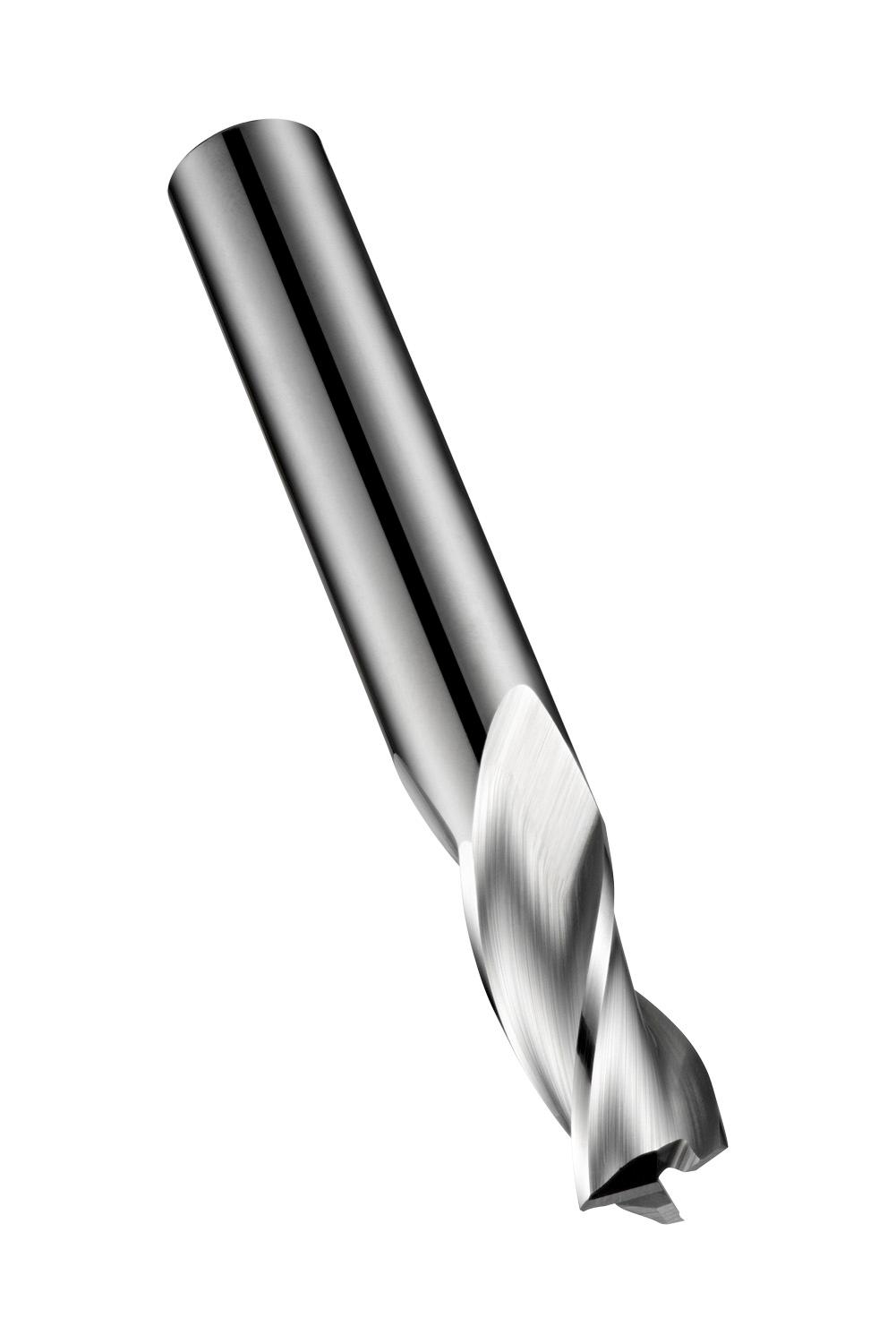

DORMER S9039.0 Carbide Cutters

Product Code: S9039.0

$96.31$87.55 Ex. GST

Product Code: S9039.0 SKU S9039.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Regular length end mill with 3 flutes, diameter 9mm with 21mm length of cut, 72mm overall length and 0.13mm 45° chamfered corner edges, according to DORMER standard with a 10mm plain shank, solid carbide with bright finish, 30° helix and 12° rake angle for shoulder milling and slot milling in free machining, plain carbon and alloy steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys

Additional information

Weight 0.0935 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760133071
Product number (SAP): 86020301
Ordering code ANSI: S9039.0
Gross weight – grams: 71.8
Cutting diameter – millimeter (DC): 9 mm
Corner chamfer width – millimeter (CHW): 0.13 mm
Connection diameter – millimeter (DCON MS): 10 mm
Depth of cut maximum – millimeter (APMX): 21 mm
Overall length – millimeter (OAL): 72 mm
Flute count (NOF): 3
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: S9039.0

Brand

DORMER
