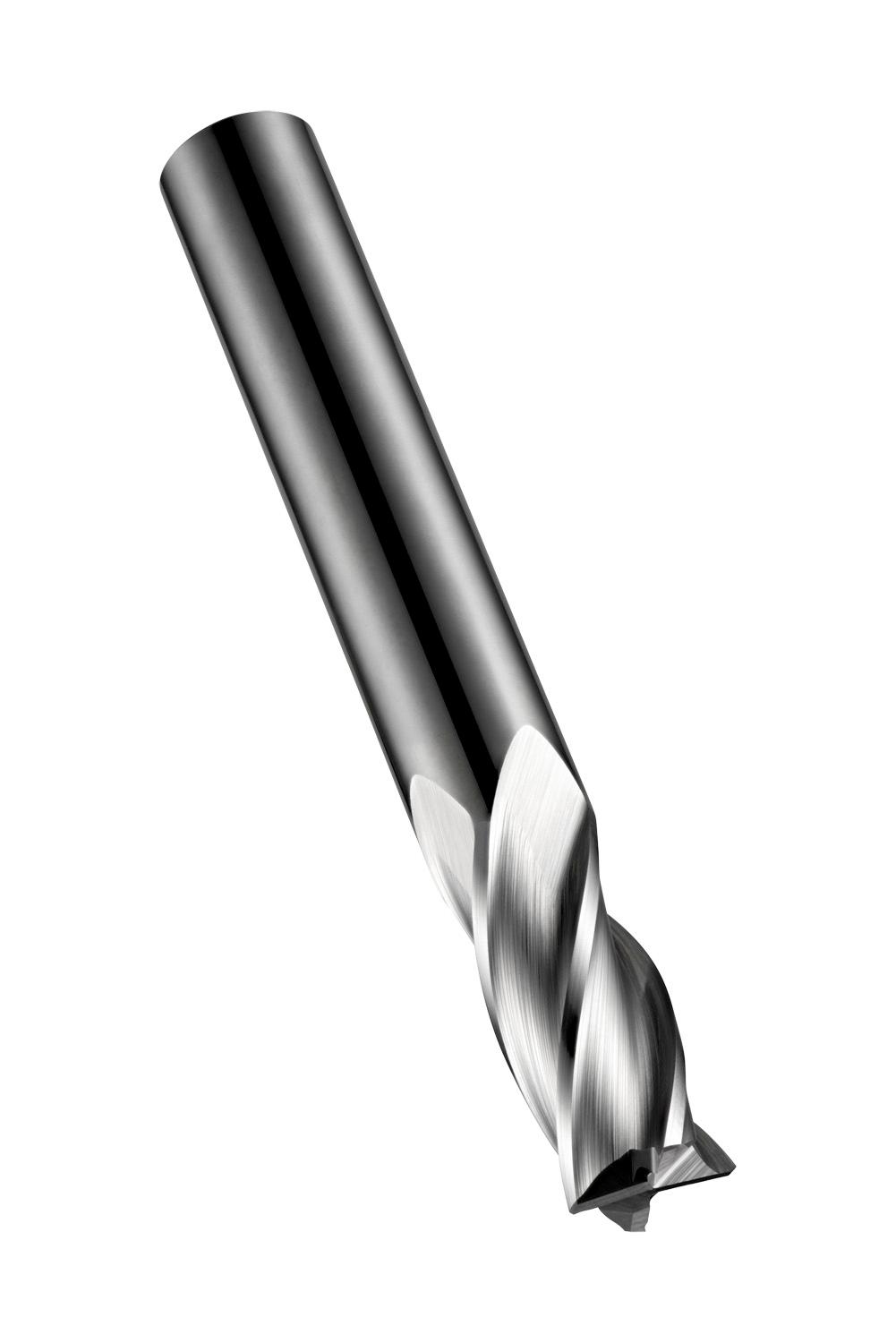

DORMER S90416.0 Carbide Cutters

Product Code: S90416.0

$223.20$202.91 Ex. GST

Product Code: S90416.0 SKU S90416.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Regular length end mill with 4 flutes, diameter 16mm with 32mm length of cut, 92mm overall length and 0.2mm 45° chamfered corner edges, according to DORMER standard with a 16mm plain shank, solid carbide with bright finish, 30° helix and 12° rake angle for shoulder milling in free machining, plain carbon and alloy steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys

Additional information

Weight 0.2167 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760133101
Product number (SAP): 86020305
Ordering code ANSI: S90416.0
Gross weight – grams: 235
Cutting diameter – millimeter (DC): 16 mm
Corner chamfer width – millimeter (CHW): 0.2 mm
Connection diameter – millimeter (DCON MS): 16 mm
Depth of cut maximum – millimeter (APMX): 32 mm
Overall length – millimeter (OAL): 92 mm
Flute count (NOF): 4
Radial rake angle (GAMF): 12
ISO: S90416.0

Brand

DORMER
