DORMER S92218.0 Carbide Cutters

Product Code: S92218.0

$328.57$298.70 Ex. GST

Product Code: S92218.0 SKU S92218.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

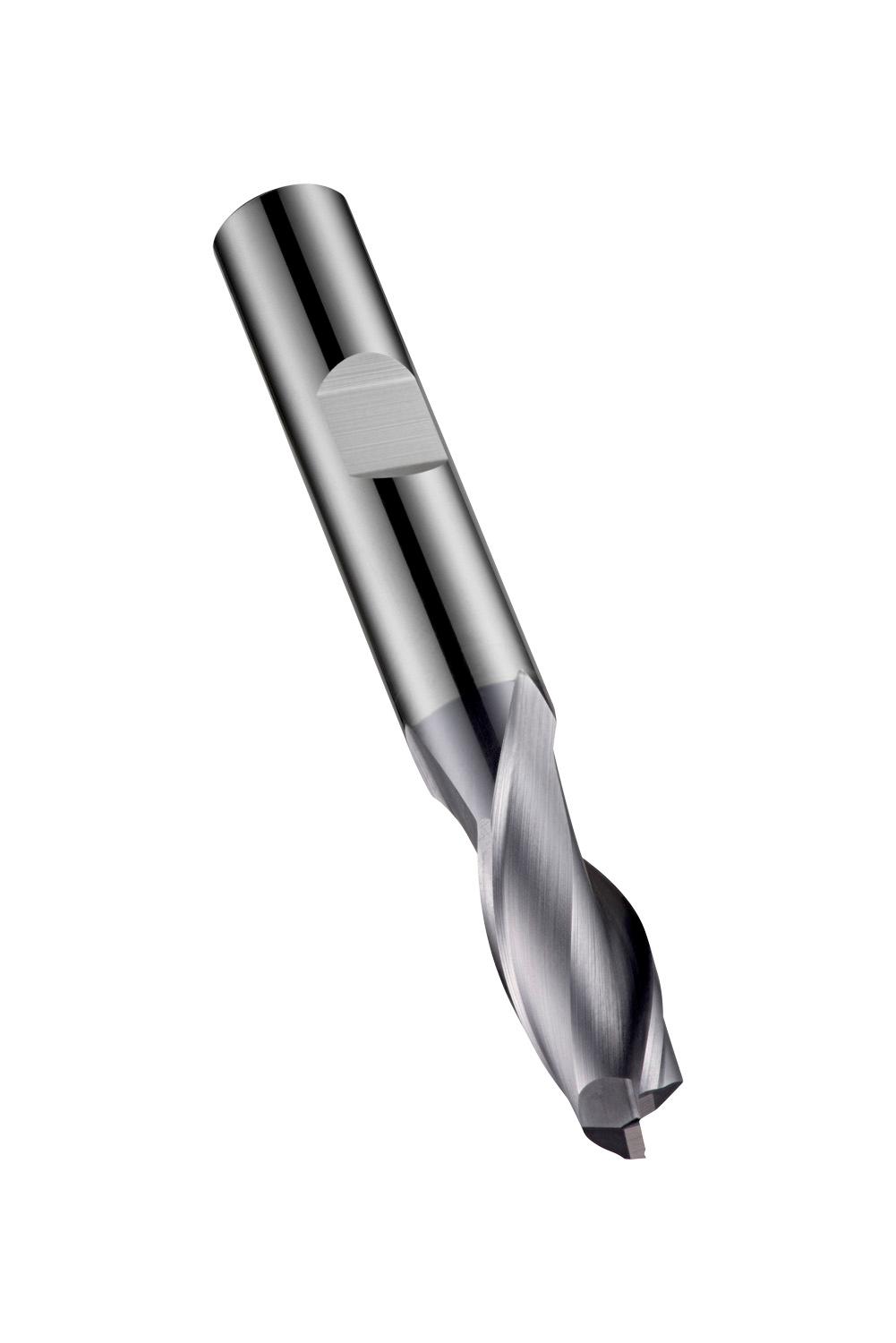

Regular length end mill with 2 flutes, diameter 18mm with 32mm length of cut, 92mm overall length and 0.2mm 45° chamfered corner edges, according to DORMER standard with a 18mm Weldon shank, solid carbide with TiAlN coating, 30° helix and 12° rake angle for slot milling in steel and cast steel, cast-iron and cast aluminium and copper or copper alloys

Additional information

Weight 0.3190 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760040041
Product number (SAP): 86020321
Ordering code ANSI: S92218.0
Gross weight – grams: 278.1
Cutting diameter – millimeter (DC): 18 mm
Corner chamfer width – millimeter (CHW): 0.2 mm
Connection diameter – millimeter (DCON MS): 18 mm
Depth of cut maximum – millimeter (APMX): 32 mm
Overall length – millimeter (OAL): 92 mm
Flute count (NOF): 2
Radial rake angle (GAMF): 12
ISO: S92218.0

Brand

DORMER
