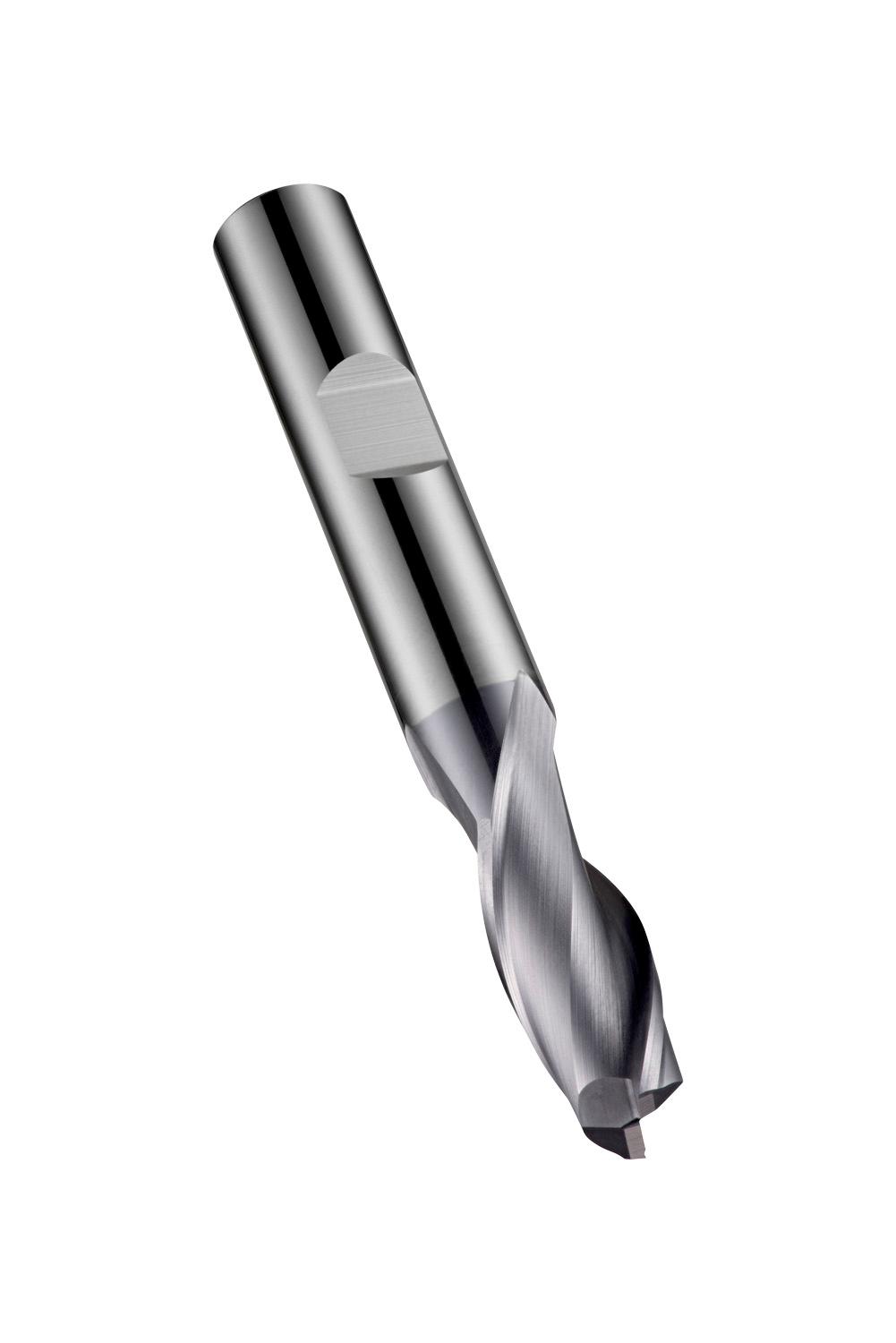

DORMER S92220.0 Carbide Cutters

Product Code: S92220.0

$395.42$359.47 Ex. GST

Product Code: S92220.0 SKU S92220.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Regular length end mill with 2 flutes, diameter 20mm with 38mm length of cut, 104mm overall length and 0.3mm 45° chamfered corner edges, according to DORMER standard with a 20mm Weldon shank, solid carbide with TiAlN coating, 30° helix and 12° rake angle for slot milling in steel and cast steel, cast-iron and cast aluminium and copper or copper alloys

Additional information

Weight 0.3839 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760040058
Product number (SAP): 86020324
Ordering code ANSI: S92220.0
Gross weight – grams: 384
Cutting diameter – millimeter (DC): 20 mm
Corner chamfer width – millimeter (CHW): 0.3 mm
Connection diameter – millimeter (DCON MS): 20 mm
Depth of cut maximum – millimeter (APMX): 38 mm
Overall length – millimeter (OAL): 104 mm
Flute count (NOF): 2
Radial rake angle (GAMF): 12
ISO: S92220.0

Brand

DORMER
