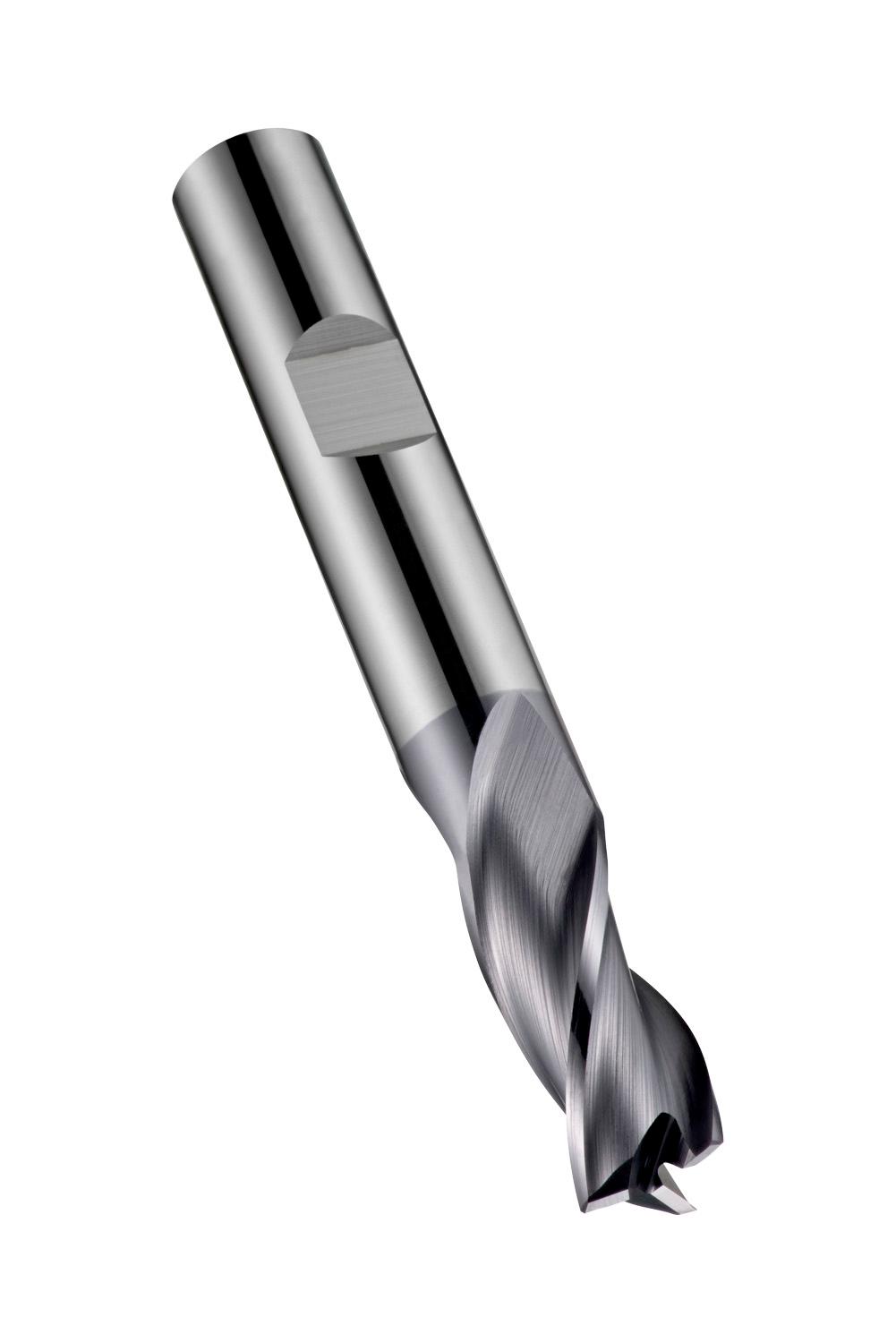

DORMER S93314.0 Carbide Cutters

Product Code: S93314.0

$198.28$180.25 Ex. GST

Product Code: S93314.0 SKU S93314.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Regular length end mill with 3 flutes, diameter 14mm with 30mm length of cut, 83mm overall length and 0.2mm 45° chamfered corner edges, according to DORMER standard with a 14mm Weldon shank, solid carbide with TiAlN coating, 30° helix and 12° rake angle for shoulder milling and slot milling in steel and cast steel, cast-iron and cast aluminium and copper or copper alloys

Additional information

Weight 0.1925 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760040171
Product number (SAP): 86020334
Ordering code ANSI: S93314.0
Gross weight – grams: 154
Cutting diameter – millimeter (DC): 14 mm
Corner chamfer width – millimeter (CHW): 0.2 mm
Connection diameter – millimeter (DCON MS): 14 mm
Depth of cut maximum – millimeter (APMX): 30 mm
Overall length – millimeter (OAL): 83 mm
Flute count (NOF): 3
Radial rake angle (GAMF): 12
ISO: S93314.0

Brand

DORMER
