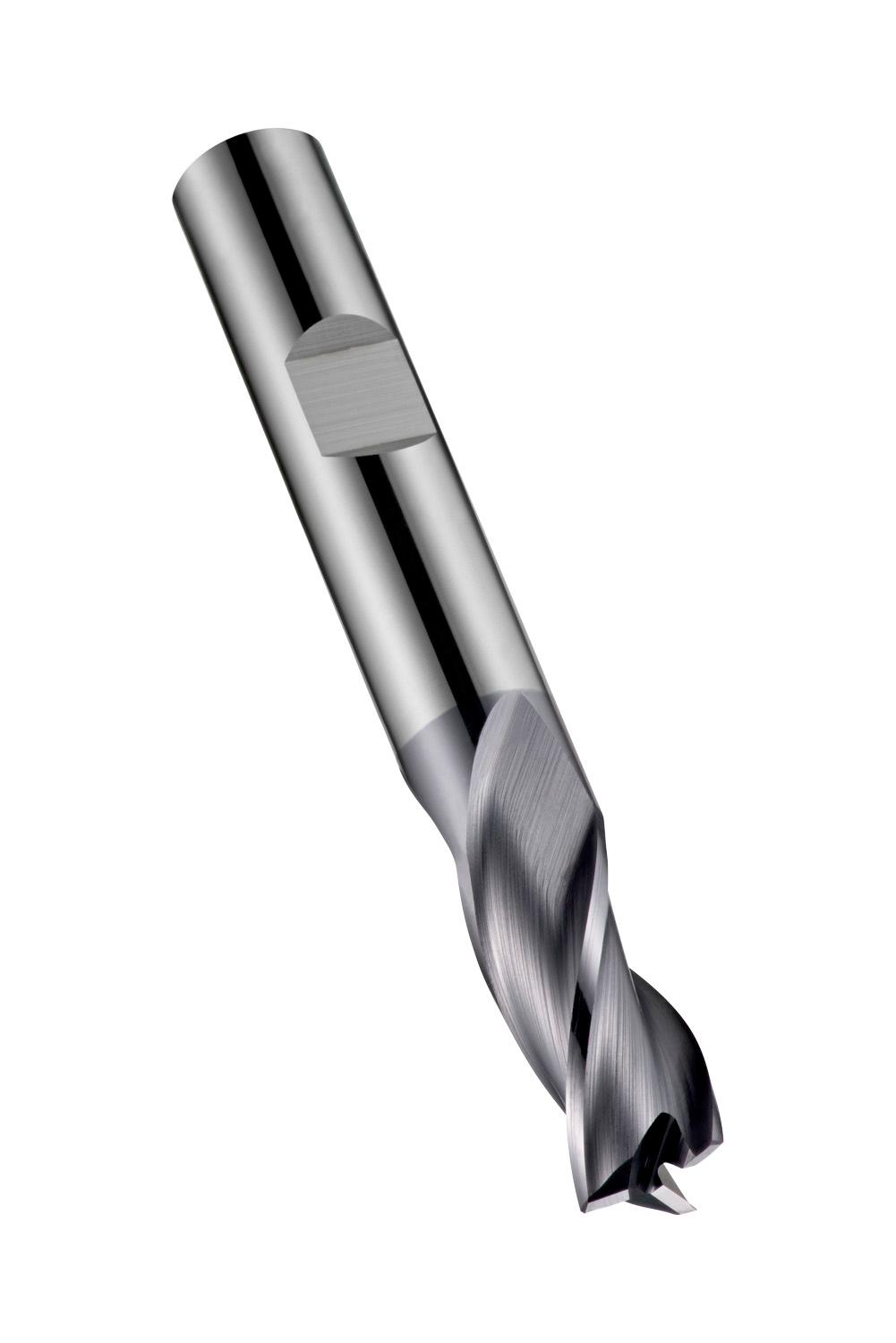

DORMER S9339.0 Carbide Cutters

Product Code: S9339.0

$124.63$113.30 Ex. GST

Product Code: S9339.0 SKU S9339.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Regular length end mill with 3 flutes, diameter 9mm with 21mm length of cut, 72mm overall length and 0.13mm 45° chamfered corner edges, according to DORMER standard with a 10mm Weldon shank, solid carbide with TiAlN coating, 30° helix and 12° rake angle for shoulder milling and slot milling in steel and cast steel, cast-iron and cast aluminium and copper or copper alloys

Additional information

Weight 0.1210 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760040140
Product number (SAP): 86020346
Ordering code ANSI: S9339.0
Gross weight – grams: 71.5
Cutting diameter – millimeter (DC): 9 mm
Corner chamfer width – millimeter (CHW): 0.13 mm
Connection diameter – millimeter (DCON MS): 10 mm
Depth of cut maximum – millimeter (APMX): 21 mm
Overall length – millimeter (OAL): 72 mm
Flute count (NOF): 3
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: S9339.0

Brand

DORMER
