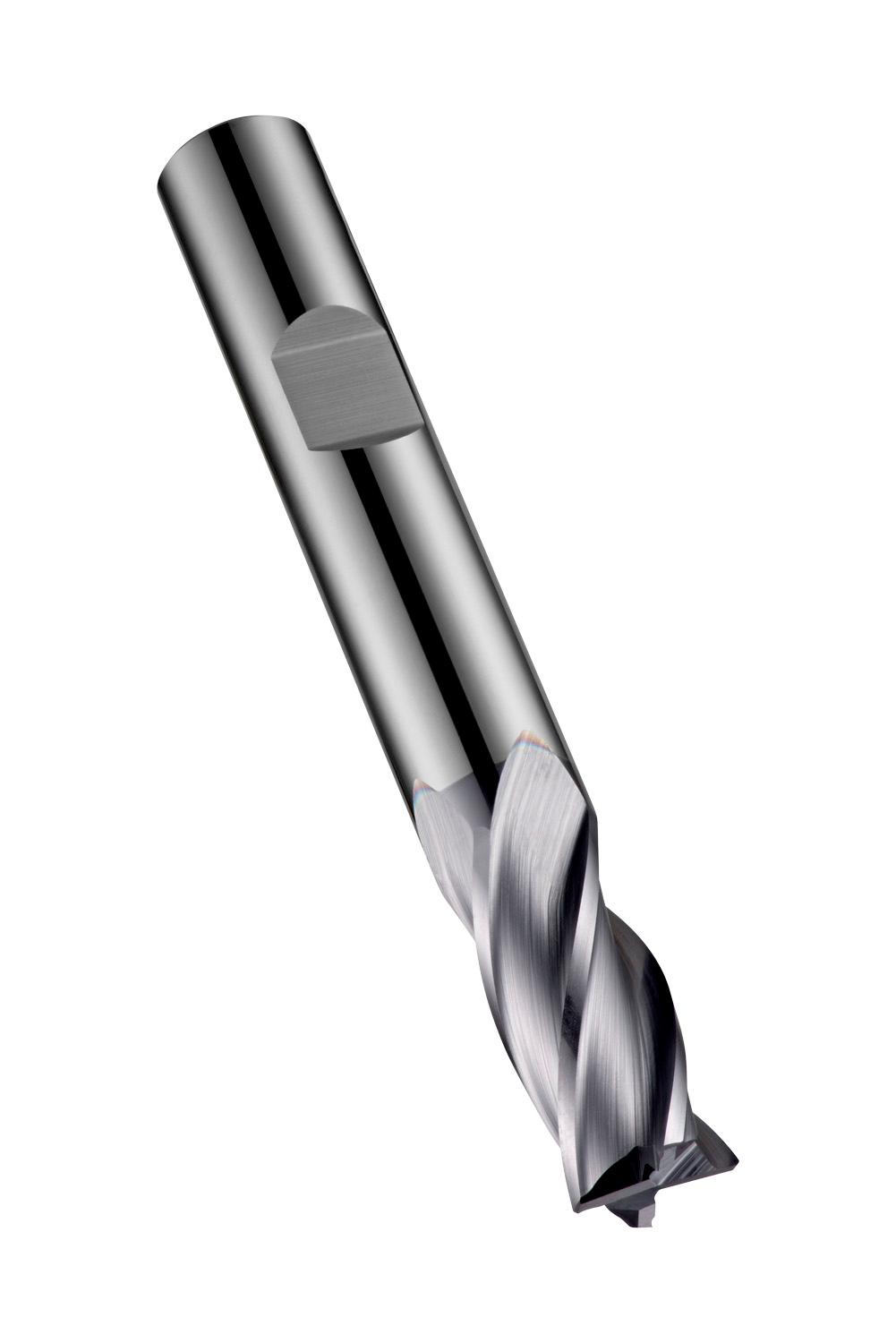

DORMER S94412.0 Carbide Cutters

Product Code: S94412.0

$174.48$158.62 Ex. GST

Product Code: S94412.0 SKU S94412.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Regular length end mill with 4 flutes, diameter 12mm with 25mm length of cut, 73mm overall length and 0.2mm 45° chamfered corner edges, according to DORMER standard with a 12mm Weldon shank, solid carbide with TiAlN coating, 30° helix and 12° rake angle for shoulder milling in steel and cast steel, cast-iron and cast aluminium and copper or copper alloys

Additional information

Weight 0.1694 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760040317
Product number (SAP): 86020348
Ordering code ANSI: S94412.0
Gross weight – grams: 108.3
Cutting diameter – millimeter (DC): 12 mm
Corner chamfer width – millimeter (CHW): 0.2 mm
Connection diameter – millimeter (DCON MS): 12 mm
Depth of cut maximum – millimeter (APMX): 25 mm
Overall length – millimeter (OAL): 73 mm
Flute count (NOF): 4
Radial rake angle (GAMF): 12
ISO: S94412.0

Brand

DORMER
