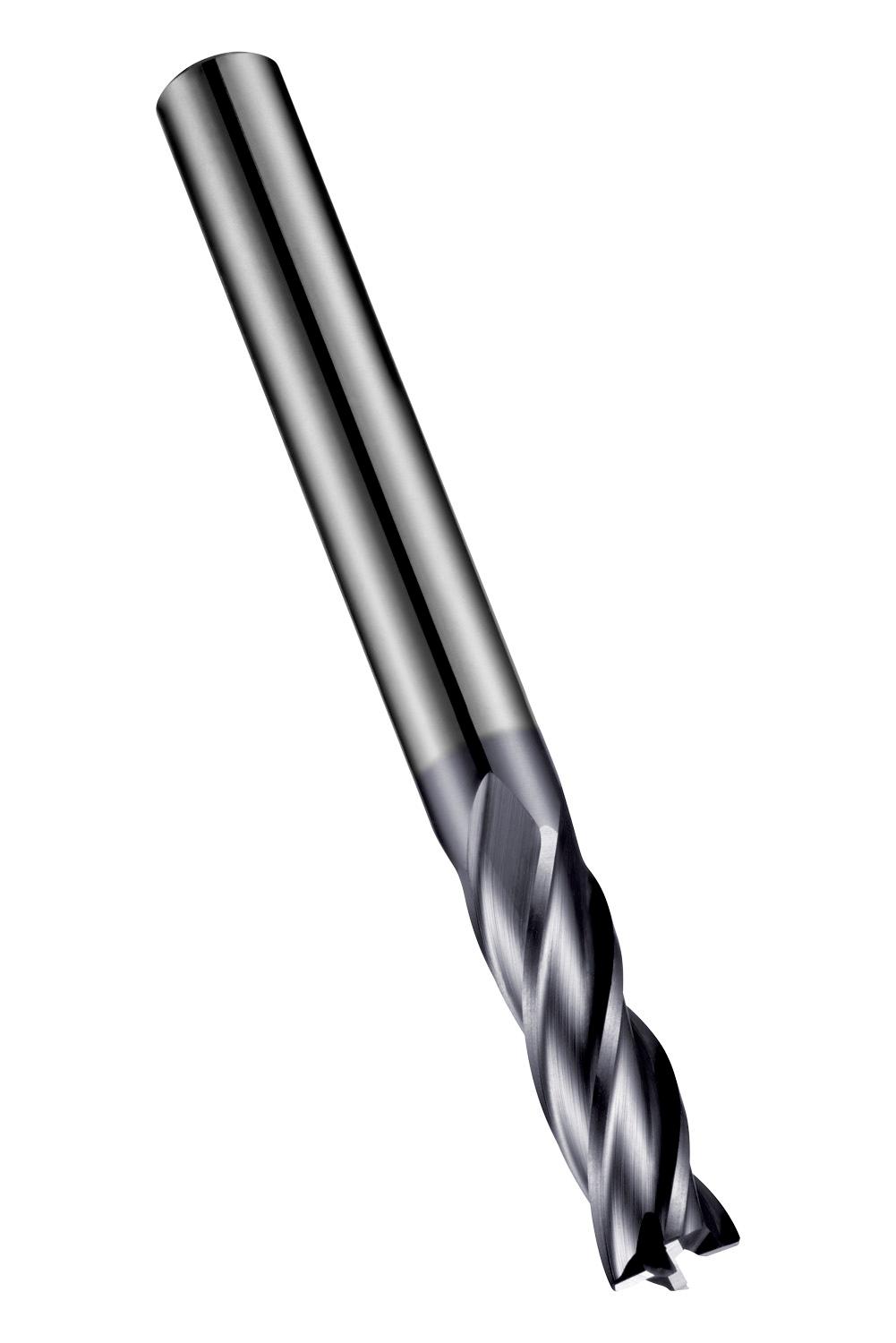

DORMER S9442.5 Carbide Cutters

Product Code: S9442.5

$57.22$52.02 Ex. GST

Product Code: S9442.5 SKU S9442.5 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Regular length end mill with 4 flutes, diameter 2.5mm with 9mm length of cut, 38mm overall length and 0.08mm 45° chamfered corner edges, according to DORMER standard with a 3mm Weldon shank, solid carbide with TiAlN coating, 30° helix and 12° rake angle for shoulder milling in steel and cast steel, cast-iron and cast aluminium and copper or copper alloys

Additional information

Weight 0.0556 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760040225
Product number (SAP): 86020353
Ordering code ANSI: S9442.5
Gross weight – grams: 6.8
Cutting diameter – millimeter (DC): 2.5 mm
Corner chamfer width – millimeter (CHW): 0.08 mm
Connection diameter – millimeter (DCON MS): 3 mm
Depth of cut maximum – millimeter (APMX): 9 mm
Overall length – millimeter (OAL): 38 mm
Flute count (NOF): 4
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: S9442.5

Brand

DORMER
