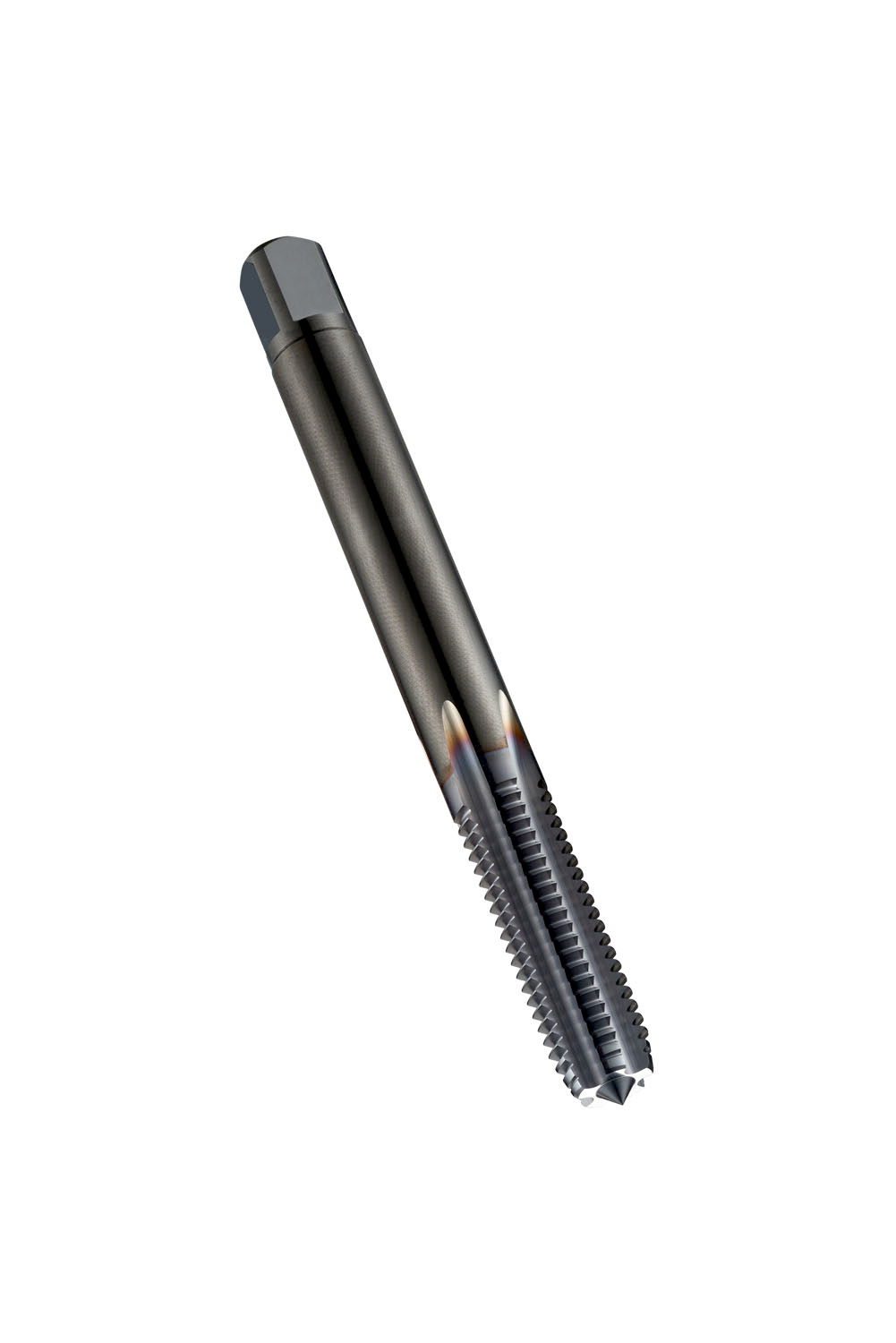

DORMER T210M5 Thread Milling Cutters

Description: Value
Product name: T210M5
Product number (SAP): 86031176
EAN number: 7320760706527
Thread diameter size (TDZ): 5
Thread pitch – millimeter (TP): 0.8 mm
Overall length – millimeter (OAL): 70 mm
Overall length – inch (OAL): 2.7559 inch
Threading length – millimeter (THL): 13.5 mm
Threading length – inch (THL): 0.5315 inch
Connection diameter – inch (DCON MS): 0.2362 inch
Connection diameter – millimeter (DCON MS): 6 mm
Flute count (NOF): 5
Clamping width – inch (WSC): 0.1929 inch
Clamping width – millimeter (WSC): 4.9 mm
Clamping Length – inch (LCS): 0.315 inch
Clamping Length – millimeter (LSC): 8 mm
Premachined hole diameter – inch (PHD): 0.1693 inch
Premachined hole diameter – millimeter (PHD): 4.3 mm
Gross weight – grams: 29.2
ISO: T210M5
Ordering code ANSI: T210M5
