DORMER T215M10 Thread Milling Cutters

Description

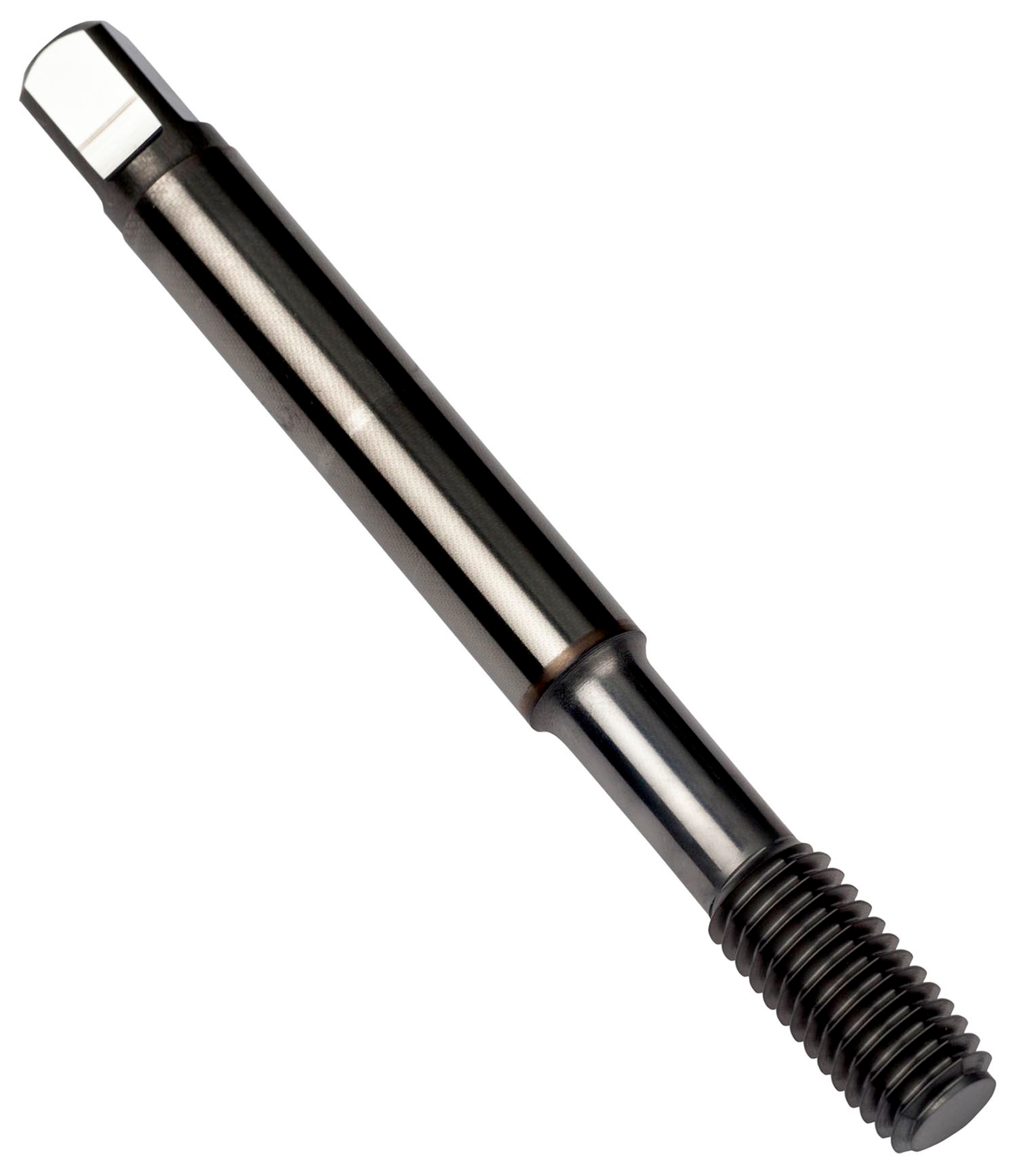

Thread forming tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M10 with 1.50 mm pitch and 6HX class of fit, dimensions according to DIN 2174 standard with 10.0mm shank and 8.0mm square drive, solid carbide with TiCN coating for 3xD through or blind hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium and copper or copper alloys

Additional information

Weight	0.6281 kg
Dimensions
barcode
Additional Information	Description: Value Product name: T215M10 Product number (SAP): 86031148 EAN number: 7320760704677 Thread diameter size (TDZ): 10 Thread pitch – millimeter (TP): 1.5 mm Overall length – millimeter (OAL): 100 mm Overall length – inch (OAL): 3.937 inch Threading length – millimeter (THL): 24 mm Threading length – inch (THL): 0.9449 inch Connection diameter – inch (DCON MS): 0.3937 inch Connection diameter – millimeter (DCON MS): 10 mm Flute count (NOF): 5 Usable Length – inch (LU): 1.5354 inch Usable Length – millimeter (LU): 39 mm Clamping width – inch (WSC): 0.315 inch Clamping width – millimeter (WSC): 8 mm Clamping Length – inch (LCS): 0.4331 inch Clamping Length – millimeter (LSC): 11 mm Premachined hole diameter – inch (PHD): 0.3661 inch Premachined hole diameter – millimeter (PHD): 9.3 mm Gross weight – grams: 110.3 ISO: T215M10 Ordering code ANSI: T215M10

Need Technical Advice?

Description

Additional information

Brand

DORMER
