DORMER T215M5 Thread Milling Cutters

Product Code: T215M5

$463.40$421.27 Ex. GST

Product Code: T215M5 SKU T215M5 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

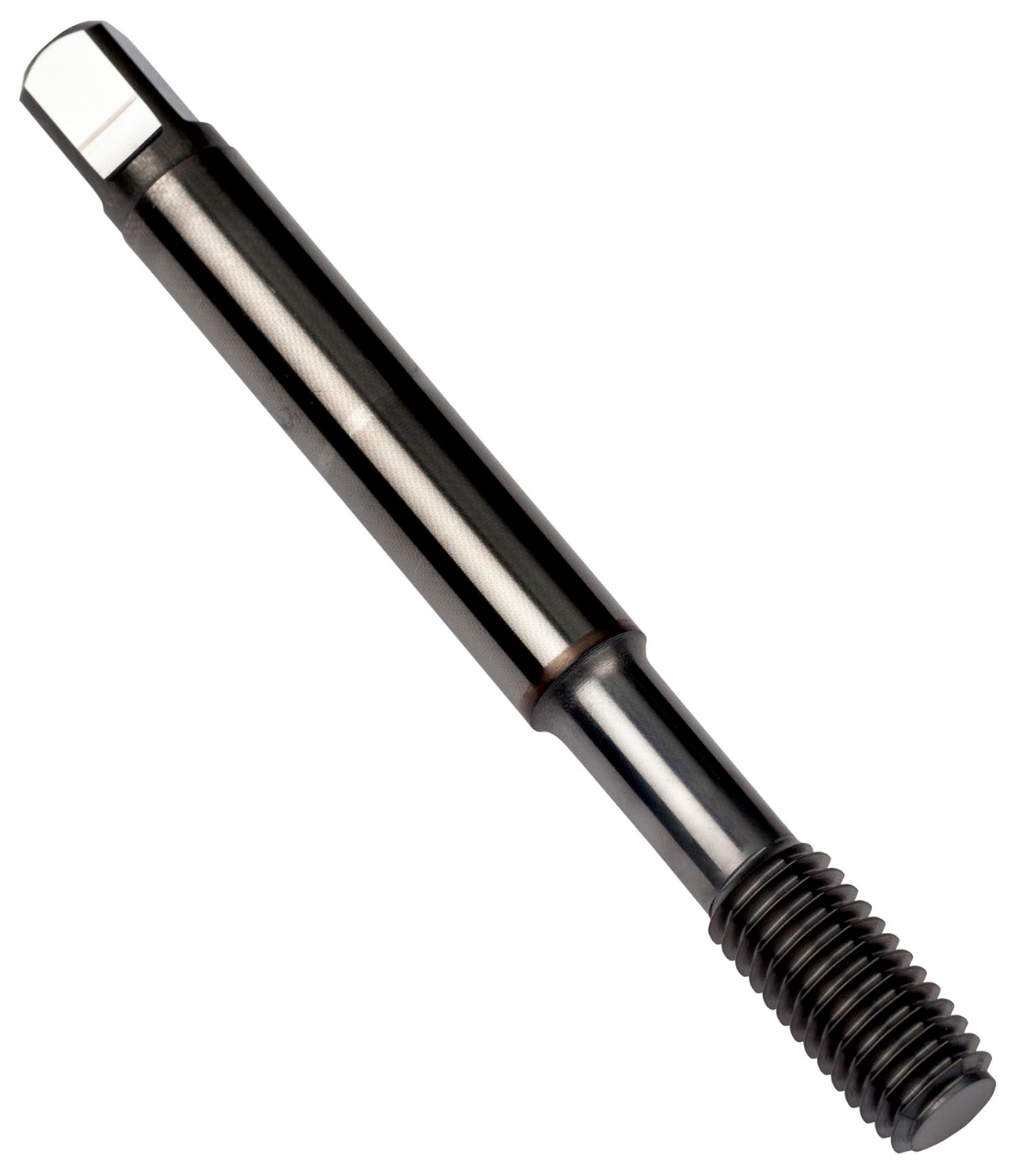

Thread forming tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M5 with 0.80 mm pitch and 6HX class of fit, dimensions according to DIN 2174 standard with 6.0mm shank and 4.9mm square drive, solid carbide with TiCN coating for 3xD through or blind hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium and copper or copper alloys

Additional information

Weight 0.4499 kg
Dimensions
barcode
Additional Information

Description: Value
Product name: T215M5
Product number (SAP): 86031145
EAN number: 7320760704646
Thread diameter size (TDZ): 5
Thread pitch – millimeter (TP): 0.8 mm
Overall length – millimeter (OAL): 70 mm
Overall length – inch (OAL): 2.7559 inch
Threading length – millimeter (THL): 16 mm
Threading length – inch (THL): 0.6299 inch
Connection diameter – inch (DCON MS): 0.2362 inch
Connection diameter – millimeter (DCON MS): 6 mm
Flute count (NOF): 5
Clamping width – inch (WSC): 0.1929 inch
Clamping width – millimeter (WSC): 4.9 mm
Clamping Length – inch (LCS): 0.315 inch
Clamping Length – millimeter (LSC): 8 mm
Premachined hole diameter – inch (PHD): 0.1811 inch
Premachined hole diameter – millimeter (PHD): 4.6 mm
Gross weight – grams: 30.38
ISO: T215M5
Ordering code ANSI: T215M5

Brand

DORMER
