$902.83$820.75 Ex. GST

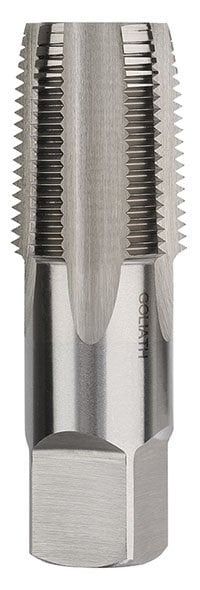

1.1/2″ x 11.5 NPT Intermediate HSS Tap – Goliath
HSS Bright Finish NPT Hand and Machine Intermediate Tap.
Pipe taps are much shorter than a similar size of regular hand tap, but the design features are the same.
Goliath HSS taps provide a high hardness to toughness ratio, compressive and tensile strength, good abrasion resistance and resistance to micro-chipping, ensuring a long tool life.
Tapered Pipe Taps are used for tapered threading by hand or machine.
National Pipe Tapered (NPT)is a US standard for tapered threads used to join pipes and fittings. ANSI/ASME standard B1.20.1 covers threads of 60º form with flat crests and roots.
The taper on NPT threads allows them to form a seal when torqued as the flanks of the threads compress against each other. However a clearance remains between the crests and roots of the threads, resulting in a leakage around this spiral. This means that NPT fittings must be made leak free with the aid of thread seal tape or a thread sealant compound. For each 12″ increase in distance from the end, the diameter increases by 3/4″.
Intermediate Taps have a lead of four threads and are used in most general purpose applications to cut a thread true to a pre-drilled pilot hole.
Manufactured from HSS this general purpose tap is designed for use in medium tensile materials and is for hand or general machine use.
Category: Goliath Threading Tools, Taps Hand & Machine, HSS Pipe Taps and Reamers, NPT for Tapered Threads
Drill Diameter (mm): 44
Overall Length (mm): 125
Pitch (mm): 11?
Lead: Intermediate
| barcode | 9326518159780 |
|---|---|
