Goliath Threading Tools 1.1/4″ UNF Coventry Chaser 2HD S-RAKE – Goliath

Description

1.1/4″ UNF Coventry Chaser 2HD S-RAKE – Goliath

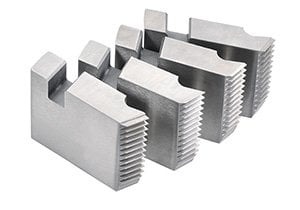

4 piece coventry style thread cutting chaser.
Coventry Chasers (Dieheads) can be used on Turret lathes, CNC, and automatic screw machines. The total system is noted for its ease and simplicity in setting, and for the accuracy of cut over a very wide range of thread variations. Automatic self-opening at the completion of each cut makes Coventry ideal for batch or continuous production work. Coventry chasers are designed so that cutting takes place at the chamfer and the first full tooth. The other teeth are above centre height, so they act as a nut, ensuring accurate pitch.
Rugged – simple construction for reliability and long life.
Compactness – permitting use on machines with limited clearance.
Accurate Pitch – due to the guiding action of the non-cutting portion of the die.
Adjustability – providing fine regulation of finished diameter for 3a class threads.
Parallel threads – due to the very efficient support of the dies in the diehead.
Minimum downtime – for change of thread size, important for production economy on short to medium batch runs.
Category: Goliath Threading Tools, Chasers, Coventry Chasers, UNF
