$200.78$182.53 Ex. GST

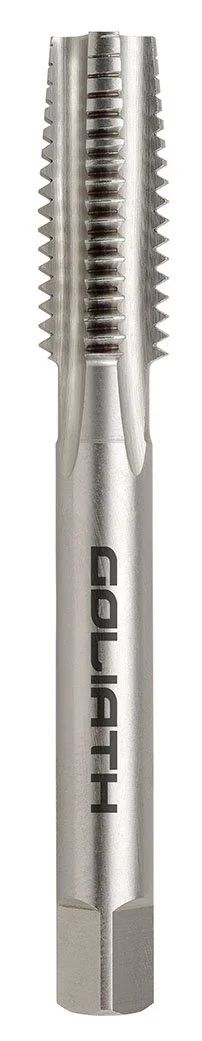

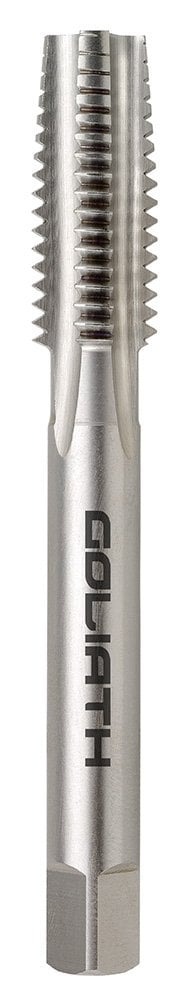

24 x 3mm MC Taper HSS Tap – Goliath
HSS Bright Finish Metric Coarse Hand and Machine Taper Tap.
HSS Straight Flute Short Machine and Hand Taps.
These general purpose taps are ideal for creating new threads in a wide variety of materials.
Goliath HSS taps provide a high hardness to toughness ratio, compressive and tensile strength, good abrasion resistance and resistance to micro-chipping, ensuring a long tool life.
Metric Coarse angle of thread is 60 degrees.
The crest is flat and the thread has clearance at the root allowing external thread and internal thread to engage well. Larger root radius and lower thread height enable easy screw thread processing and increase thread screw strength.
The major diameter of external thread and pitch are specified by a simple numerical value (most commonly measured in millimetres).
Taper Taps have a lead of eight threads and are used as a starting tap in difficult or high precision holes.
Manufactured from HSS this general purpose tap is designed for use in medium tensile materials and is for hand or general machine use.
Category: Goliath Threading Tools, Taps Hand & Machine, HSS Straight Flute Short Machine and Hand Taps, Metric Coarse
Drill Diameter (mm): 21
Overall Length (mm): 130
Pitch (mm): 3
Lead: Taper
| Weight | 0.249 kg |
|---|---|
| Dimensions | Length 13.5cm x Width 2.4cm x Depth 2.4cm |
| barcode | 9349009001047 |
| Additional Information |
