$105.02$95.47 Ex. GST

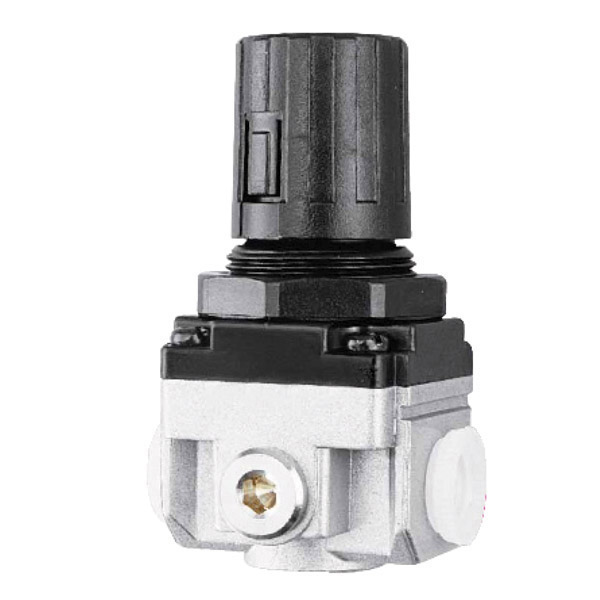

Non raising ”Press to Lock” adjusting knob for locking at any set pressure. Diaphragm operated, relieving type mechanism with pressure compensated by balanced poppet. These can be installed in any position & need not be vertically mounted. In-built venturi for flow compensation. 220 psi maximum pressure. 0° – 60° ambient temperature. Modular mounting and vertical mounting features. Includes gauge & bracket
Code: R14614/GB
Port Size: 1/4″
Pressure Gauge Port Size: 1/8″
Flow Rate: 56 CFM / 1600 LPM
Height x Width: 135 x 55mm
Classification: Intermediate
| Weight | 0.5100 kg |
|---|---|
| barcode | 8901486600224 |
