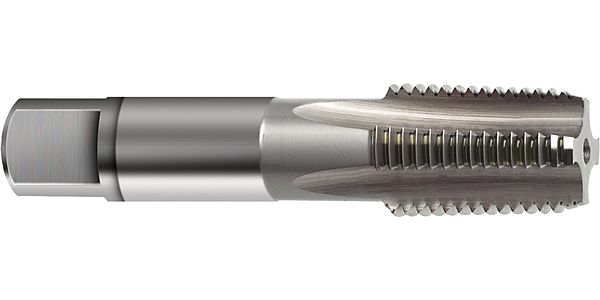

Guhring 1 1/2 NPT Gun Nose Taps HSS-E

Product Code: 973 48,940

$1,209.03$1,099.12 Ex. GST

Product Code: 973 48,940 SKU 973 48,940 Category CUTTING TOOLS (HSS & Carbide)

Guhring 1 1/2 NPT Gun Nose Taps HSS-E

Guhring 1 1/2 NPT Gun Nose Taps HSS-E - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for NPT-threads 1 1/2 / 1.5xD / Company std. / HSS-E / bright / Type: N / Form: C / blind hole / Cutting direction: right-hand /
Application: P ≤ 800 N/mm²

Additional information

Weight	1.1650 kg
Dimensions	Length 140cm x Width cm x Depth cm
barcode

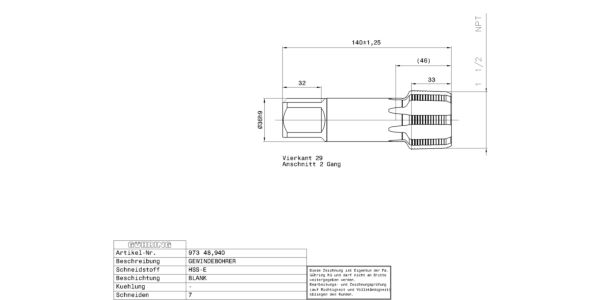

Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: Company std. Surface: bright Discount group: 103 Type: 973 Cutting direction: right-hand Type: N Material: HSS-E Additional information: Internal threading Form: C Threads: NPT Hole type: blind hole Groove: straight-fluted cutting edges Chamfer lead length: 2-3 Code no.: 48.940 Weight: 1.165 No of cutting edges: 7 Total length: 140.000 Thread length: 33.000 Groove length: 52.000 Usable length: 56.000 Wrench opening 1: 29.000 Core hole Ø: 43.70 Shank Ø: 36.000 Nominal dimension thread: 1 1/2 Pitch: 2.209 External Ø: 46.940 Pitch thread/inch: 11.500 Reach length: 46.000 Statistical goods number: 82074010

Brand

Guhring
