Guhring 1 1/4 NPT Gun Nose Taps HSS-E

Product Code: 973 42,900

$915.38$832.16 Ex. GST

Product Code: 973 42,900 SKU 973 42,900 Category CUTTING TOOLS (HSS & Carbide)

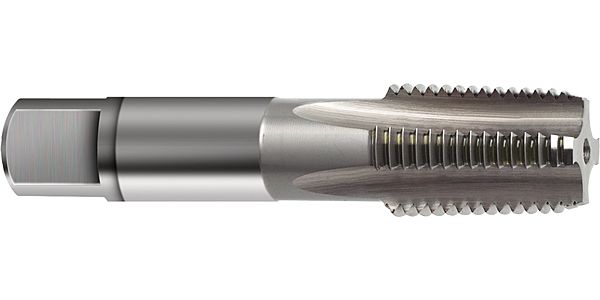

Guhring 1 1/4 NPT Gun Nose Taps HSS-E

Guhring 1 1/4 NPT Gun Nose Taps HSS-E - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for NPT-threads 1 1/4 / 1.5xD / Company std. / HSS-E / bright / Type: N / Form: C / blind hole / Cutting direction: right-hand /
Application: P ≤ 800 N/mm²

Additional information

Weight	0.6950 kg
Dimensions	Length 125cm x Width cm x Depth cm
barcode

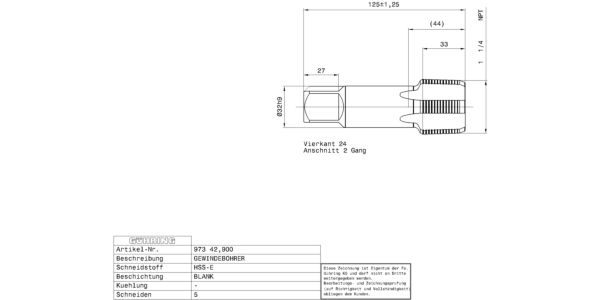

Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: Company std. Surface: bright Discount group: 103 Type: 973 Cutting direction: right-hand Type: N Material: HSS-E Additional information: Internal threading Form: C Threads: NPT Hole type: blind hole Groove: straight-fluted cutting edges Chamfer lead length: 2-3 Code no.: 42.900 Weight: 0.695 No of cutting edges: 5 Total length: 125.000 Thread length: 33.000 Groove length: 50.500 Usable length: 54.500 Wrench opening 1: 24.000 Core hole Ø: 37.70 Shank Ø: 32.000 Nominal dimension thread: 1 1/4 Pitch: 2.209 External Ø: 40.880 Pitch thread/inch: 11.500 Reach length: 44.000 Statistical goods number: 82074010

Brand

Guhring
