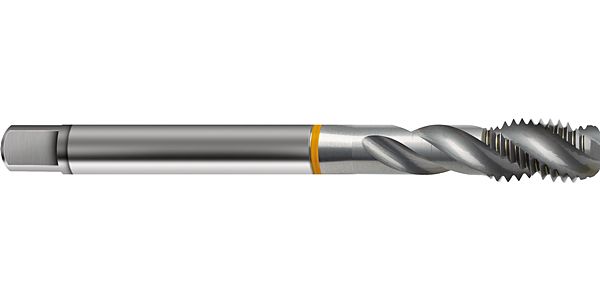

Guhring 1 – 12 UNF Taps HSS-E Yellow band

Product Code: 911 25,400

$531.06$482.78 Ex. GST

Product Code: 911 25,400 SKU 911 25,400 Category CUTTING TOOLS (HSS & Carbide)

Guhring 1 - 12 UNF Taps HSS-E Yellow band

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for UNF-threads 1 – 12 / 2B / 3xD / ~DIN 374 / DIN 2184-1 / HSS-E / bright / Type: N R40 / Form: C / blind hole / Cutting direction: right-hand /
Application: P ≤ 800 N/mm²

Additional information

Weight	0.266 kg
Dimensions	Length 140cm x Width cm x Depth cm
barcode

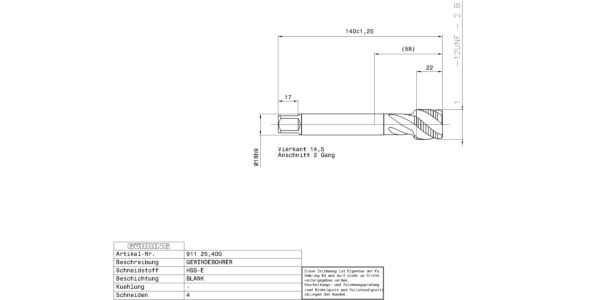

Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: ~DIN 374 Surface: bright Discount group: 103 Type: 911 Cutting direction: right-hand Type: N R40 Material: HSS-E Additional information: Internal threading Form: C Coloured ring: yellow ring Threads: UNF Tolerance class thread: 2B Hole type: blind hole Groove: 40° right hand helix Chamfer lead length: 2-3 Code no.: 25.400 Weight: 0.266 No of cutting edges: 4 Total length: 140.000 Thread length: 22.000 Groove length: 46.000 Usable length: 50.000 Norm 2: DIN 2184-1 Wrench opening 1: 14.500 Neck Ø: 17.800 Core hole Ø: 23.25 Shank Ø: 18.000 Nominal dimension thread: 1 – 12 Pitch: 2.117 External Ø: 25.500 Pitch thread/inch: 12.000 Reach length: 58.000 Statistical goods number: 82074010

Brand

Guhring
