Guhring 1/2 – 13 Bottoming UNC Threads HSS

Product Code: 984 12,700

$102.49$93.17 Ex. GST

Product Code: 984 12,700 SKU 984 12,700 Category CUTTING TOOLS (HSS & Carbide)

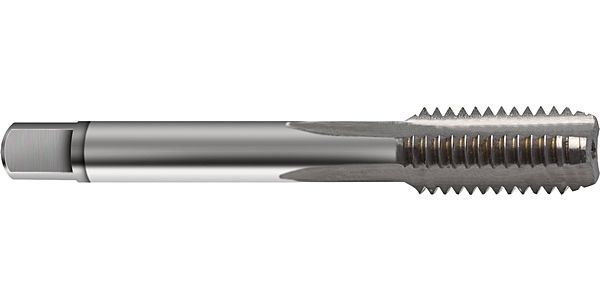

Guhring 1/2 - 13 Bottoming UNC Threads HSS

Guhring 1/2 - 13 Bottoming UNC Threads HSS - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Bottoming tap Hand taps for UNC-threads 1/2 – 13 / 2B / ~DIN 352 / DIN 2184-2 / HSS / bright / Type: N / Form: C / through-, blind hole / Cutting direction: right-hand /
Application: P ≤ 800 N/mm²

Additional information

Weight	0.0360 kg
Dimensions	Length 75cm x Width cm x Depth cm
barcode

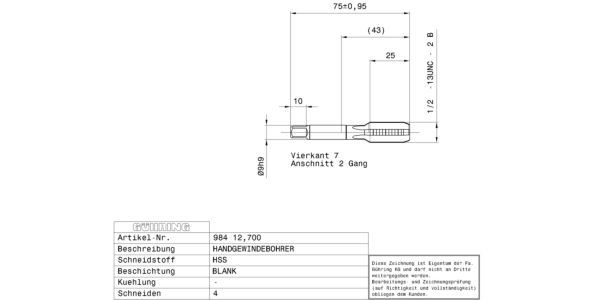

Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: ~DIN 352 Surface: bright Discount group: 118 Type: 984 Cutting direction: right-hand Type: N Material: HSS Additional information: Bottoming tap Form: C Coloured ring: yellow ring Threads: UNC Tolerance class thread: 2B Hole type: through-, blind hole Groove: straight-fluted cutting edges Chamfer lead length: 2-3 Code no.: 12.700 Weight: 0.036 No of cutting edges: 4 Total length: 75.000 Thread length: 25.000 Groove length: 36.000 Norm 2: DIN 2184-2 Wrench opening 1: 7.000 Neck Ø: 8.800 Core hole Ø: 10.80 Shank Ø: 9.000 Nominal dimension thread: 1/2 – 13 Pitch: 1.954 External Ø: 12.780 Pitch thread/inch: 13.000 Statistical goods number: 82074010

Brand

Guhring
