Guhring 1/2-20 UNF 2B PM HSS-E Gun Nose Tap TiN Coated Red Ring

Product Code: 3994 12,700

$186.95$169.95 Ex. GST

Product Code: 3994 12,700 SKU 3994 12,700 Category CUTTING TOOLS (HSS & Carbide)

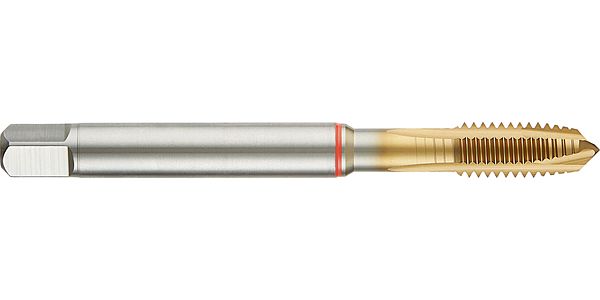

Guhring 1/2-20 UNF 2B PM HSS-E Gun Nose Tap TiN Coated Red Ring

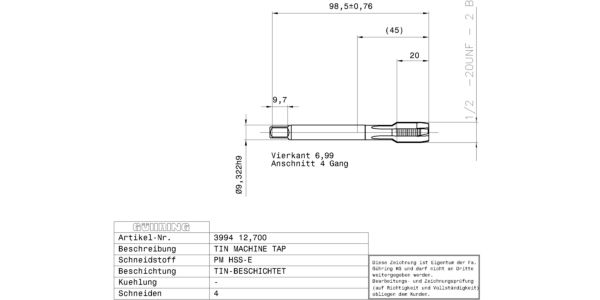

Guhring 1/2-20 UNF 2B PM HSS-E Gun Nose Tap TiN Coated Red Ring - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for UNF-threads 1/2 – 20 / 2B / Company std. / DIN/ANSI / HSS-E-PM / TiN / Type: H / Form: B / through hole / Cutting direction: right-hand

Additional information

Weight	0.0610 kg
Dimensions	Length 100cm x Width cm x Depth cm
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: Company std. Surface: TiN Discount group: 103 Type: 3994 Cutting direction: right-hand Type: H Material: HSS-E-PM Additional information: Internal threading Form: B Coloured ring: red ring Threads: UNF Tolerance class thread: 2B Hole type: through hole Groove: straight-fluted cutting edges Chamfer lead length: 3.5-5,5 Code no.: 12.700 Weight: 0.061 No of cutting edges: 4 Total length: 100.000 Thread length: 20.000 Groove length: 36.000 Usable length: 40.000 Norm 2: DIN/ANSI Wrench opening 1: 6.990 Core hole Ø: 11.50 Shank Ø: 9.322 Nominal dimension thread: 1/2 – 20 External Ø: 12.790 Pitch thread/inch: 20.000 Reach length: 45.000 Statistical goods number: 82074010

Brand

Guhring
