Guhring 1/4-20 3pce Hand Tap Set UNC Threads HSS

Product Code: 981 6,350

$173.18$157.44 Ex. GST

Product Code: 981 6,350 SKU 981 6,350 Category CUTTING TOOLS (HSS & Carbide)

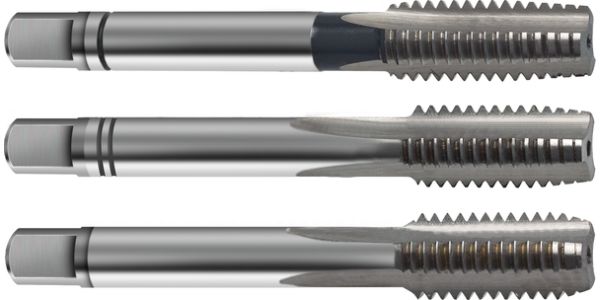

Guhring 1/4-20 3pce Hand Tap Set UNC Threads HSS

Guhring 1/4-20 3pce Hand Tap Set UNC Threads HSS - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

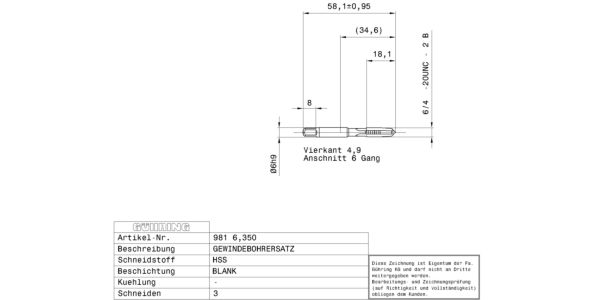

Set Hand taps for UNC-threads 1/4 – 20 / 2B / ~DIN 352 / DIN 2184-2 / HSS / bright / Type: N / through-, blind hole / Cutting direction: right-hand /
Application: P ≤ 800 N/mm²

Additional information

Weight	0.0400 kg
Dimensions	Length 56cm x Width cm x Depth cm
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: ~DIN 352 Surface: bright Discount group: 118 Type: 981 Cutting direction: right-hand Type: N Material: HSS Additional information: Set Threads: UNC Tolerance class thread: 2B Hole type: through-, blind hole Code no.: 6.350 Weight: 0.040 Number parts per set: 3.00 No of cutting edges: 3 Total length: 56.000 Thread length: 16.000 Groove length: 23.000 Norm 2: DIN 2184-2 Wrench opening 1: 4.900 Neck Ø: 4.800 Core hole Ø: 5.10 Shank Ø: 6.000 Nominal dimension thread: 1/4 – 20 Pitch: 1.270 Pitch thread/inch: 20.000 Statistical goods number: 82074010

Brand

Guhring
