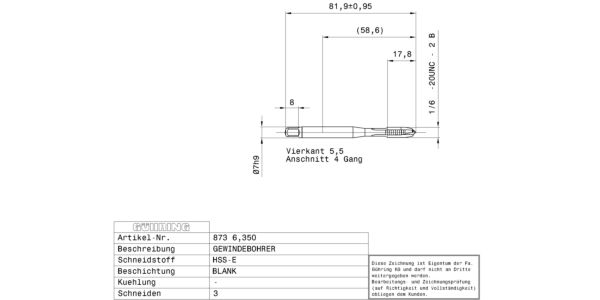

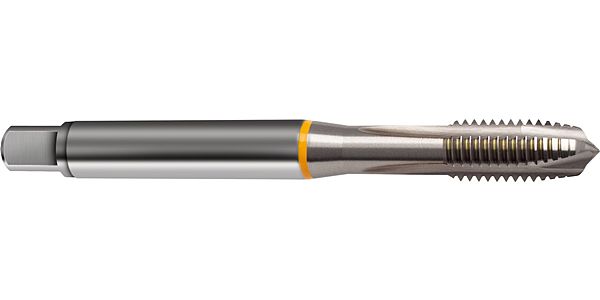

Guhring 1/4 x 20 UNC Gun Nose Taps HSS-E Yellow band

Connection code machine side: straight shank
Internal cooling: without
Norm: ~DIN 371
Surface: bright
Discount group: 103
Type: 873
Cutting direction: right-hand
Type: N
Material: HSS-E
Additional information: Internal threading
Form: B
Coloured ring: yellow ring
Threads: UNC
Tolerance class thread: 2B
Hole type: through hole
Groove: straight-fluted cutting edges
Chamfer lead length: 3.5-5,5
Code no.: 6.350
Weight: 0.018
No of cutting edges: 3
Total length: 80.000
Thread length: 16.000
Groove length: 26.000
Usable length: 30.000
Norm 2: DIN 2184-1
Wrench opening 1: 5.500
Neck Ø: 4.900
Core hole Ø: 5.10
Shank Ø: 7.000
Nominal dimension thread: 1/4 – 20
Pitch: 1.270
External Ø: 6.440
Pitch thread/inch: 20.000
Reach length: 59.000
Statistical goods number: 82074010
