Guhring 1 – 8 3pce Hand Tap Set UNC Threads HSS

Product Code: 981 25,400

$965.99$878.17 Ex. GST

Product Code: 981 25,400 SKU 981 25,400 Category CUTTING TOOLS (HSS & Carbide)

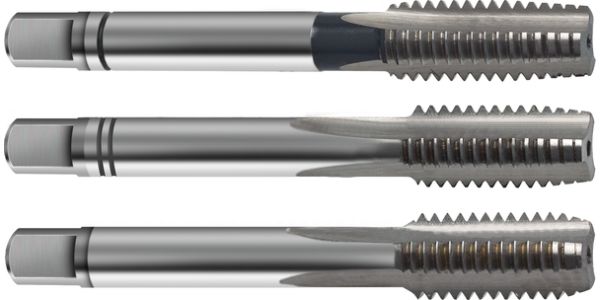

Guhring 1 - 8 3pce Hand Tap Set UNC Threads HSS

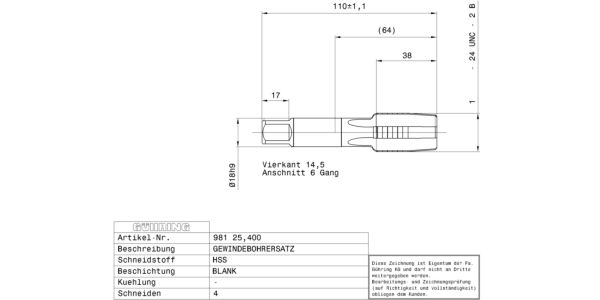

Guhring 1 - 8 3pce Hand Tap Set UNC Threads HSS - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Set Hand taps for UNC-threads 1 – 8 / 2B / ~DIN 352 / DIN 2184-2 / HSS / bright / Type: N / through-, blind hole / Cutting direction: right-hand /
Application: P ≤ 800 N/mm²

Additional information

Weight	0.2880 kg
Dimensions	Length 110cm x Width cm x Depth cm
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: ~DIN 352 Surface: bright Discount group: 118 Type: 981 Cutting direction: right-hand Type: N Material: HSS Additional information: Set Threads: UNC Tolerance class thread: 2B Hole type: through-, blind hole Code no.: 25.400 Weight: 0.288 Number parts per set: 3.00 No of cutting edges: 4 Total length: 110.000 Thread length: 38.000 Groove length: 56.000 Norm 2: DIN 2184-2 Wrench opening 1: 14.500 Neck Ø: 17.800 Core hole Ø: 22.25 Shank Ø: 18.000 Nominal dimension thread: 1 – 8 Pitch: 3.175 Pitch thread/inch: 8.000 Statistical goods number: 82074010

Brand

Guhring
