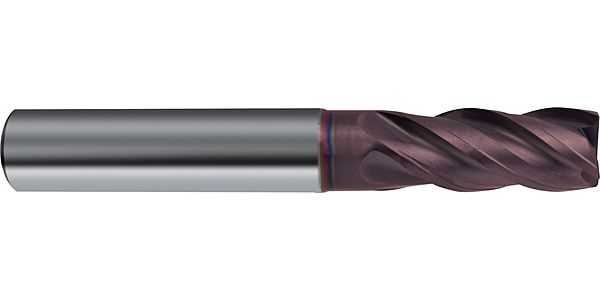

Guhring 1 Endmill 4 Flute Carbide Fire Coat

Description

Ratio end mills standard RF 100 U / Ø 25.400 mm / h10 / Company std. / Solid carbide / FIRE / Type: N / Cutting direction: right-hand

Weight	0.5930 kg

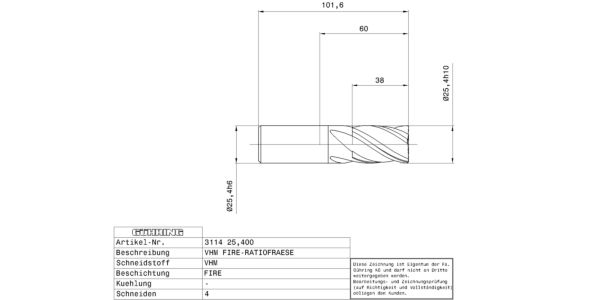

Dimensions
barcode
Additional Information	Connection code machine side: ~DIN 6535-HA Nominal Ø tolerance field: h10 Internal cooling: Without Norm: Company std. Surface: FIRE Discount group: 106 Type: 3114 Cutting direction: Right-hand Type: N Material: Solid carbide No of cutting edges: 4 Helix angle: 35/38 Code no.: 25.400 Weight: 0.593 Total length: 101.600 Groove length: 54.510 Usable length: 54.510 Shank Ø: 25.400 Nominal Ø mm: 25.400 Nominal Ø fractional: 1 Cutting edge length: 38.000 Reach length: 60.000 Corner chamfer: 0.750 Statistical goods number: 82077010
