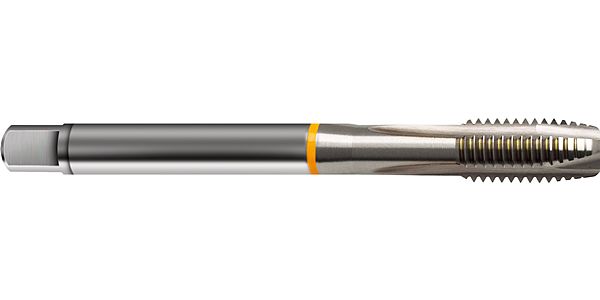

Guhring 1 x 12 UNF GunNose Tap HSS-E Yellow band

Product Code: 908 25,400

$449.05$408.23 Ex. GST

Product Code: 908 25,400 SKU 908 25,400 Category CUTTING TOOLS (HSS & Carbide)

Guhring 1 x 12 UNF GunNose Tap HSS-E Yellow band

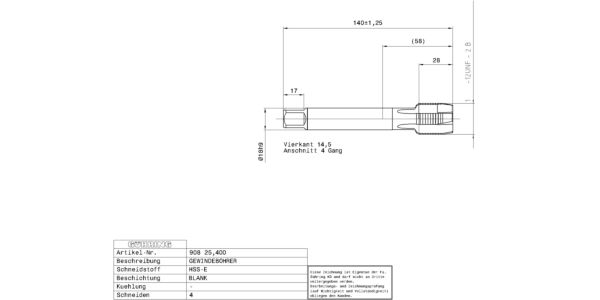

Guhring 1 x 12 UNF GunNose Tap HSS-E Yellow band - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for UNF-threads 1 – 12 / 2B / 3xD / ~DIN 374 / DIN 2184-1 / HSS-E / bright / Type: N / Form: B / through hole / Cutting direction: right-hand /
Application: P ≤ 800 N/mm²

Additional information

Weight	0.2980 kg
Dimensions	Length 140cm x Width cm x Depth cm
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: ~DIN 374 Surface: bright Discount group: 103 Type: 908 Cutting direction: right-hand Type: N Material: HSS-E Additional information: Internal threading Form: B Coloured ring: yellow ring Threads: UNF Tolerance class thread: 2B Hole type: through hole Groove: straight-fluted cutting edges Chamfer lead length: 3.5-5,5 Code no.: 25.400 Weight: 0.298 No of cutting edges: 4 Total length: 140.000 Thread length: 28.000 Groove length: 46.000 Usable length: 50.000 Norm 2: DIN 2184-1 Wrench opening 1: 14.500 Neck Ø: 17.800 Core hole Ø: 23.25 Shank Ø: 18.000 Nominal dimension thread: 1 – 12 Pitch: 2.117 External Ø: 25.500 Pitch thread/inch: 12.000 Reach length: 58.000 Statistical goods number: 82074010

Brand

Guhring
