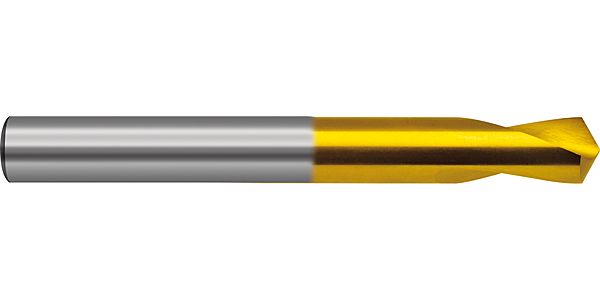

Guhring 120 degree NC-spotting drill HSS TiN Coated

Point grinding: relieved cone
Connection code machine side: DIN 1835-A
Nominal Ø tolerance field: h6
Internal cooling: without
Norm: Company std.
Surface: TiN
Discount group: 139
Type: 567
Cutting direction: right-hand
Type: N
Point angle: 120
Material: HSS
Code no.: 10.000
Weight: 0.049
No of cutting edges: 2
Total length: 89.000
Groove length: 25.000
Usable length: 20.000
Shank Ø: 10.000
Shank length: 64.000
Nominal Ø (mm): 10.000
Holder, machine side: DIN 1835-A
Statistical goods number: 82075060
