Guhring 2 – 4.5 Bottoming UNC Threads HSS

Product Code: 984 50,800

$1,412.58$1,284.16 Ex. GST

Product Code: 984 50,800 SKU 984 50,800 Category CUTTING TOOLS (HSS & Carbide)

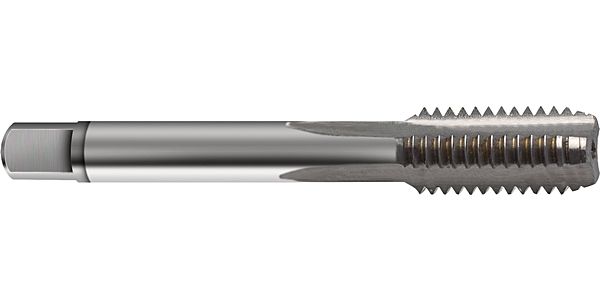

Guhring 2 - 4.5 Bottoming UNC Threads HSS

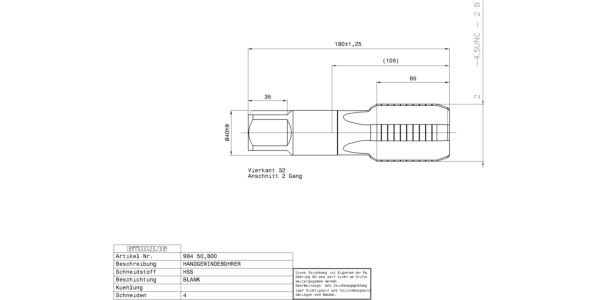

Guhring 2 - 4.5 Bottoming UNC Threads HSS - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Bottoming tap Hand taps for UNC-threads 2 – 4,5 / 2B / ~DIN 352 / DIN 2184-2 / HSS / bright / Type: N / Form: C / through-, blind hole / Cutting direction: right-hand /
Application: P ≤ 800 N/mm²

Additional information

Weight	1.5910 kg
Dimensions	Length 180cm x Width cm x Depth cm
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: ~DIN 352 Surface: bright Discount group: 118 Type: 984 Cutting direction: right-hand Type: N Material: HSS Additional information: Bottoming tap Form: C Coloured ring: yellow ring Threads: UNC Tolerance class thread: 2B Hole type: through-, blind hole Groove: straight-fluted cutting edges Chamfer lead length: 2-3 Code no.: 50.800 Weight: 1.591 No of cutting edges: 4 Total length: 180.000 Thread length: 65.000 Groove length: 95.000 Norm 2: DIN 2184-2 Wrench opening 1: 32.000 Neck Ø: 39.600 Core hole Ø: 45.00 Shank Ø: 40.000 Nominal dimension thread: 2 – 4,5 Pitch: 5.644 External Ø: 50.960 Pitch thread/inch: 4.500 Statistical goods number: 82074010

Brand

Guhring
