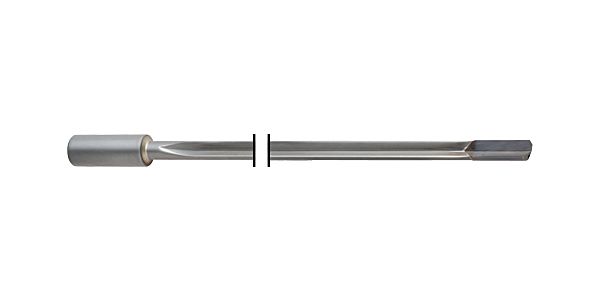

Guhring 20 x D Carbide Gun drills Carbide TiCN Coated

Connection code machine side: DIN 6535-HA
Nominal Ø tolerance field: h5
Internal cooling: with
Norm: Company std.
Surface: TiCN
Discount group: 123
Type: 5639
Cutting direction: right-hand
Type: EB 80
Material: Carbide
Identification (Article No.): ERWEITERT
(Variety): 48
Code no.: 14.500
Weight: 0.468
No of cutting edges: 1

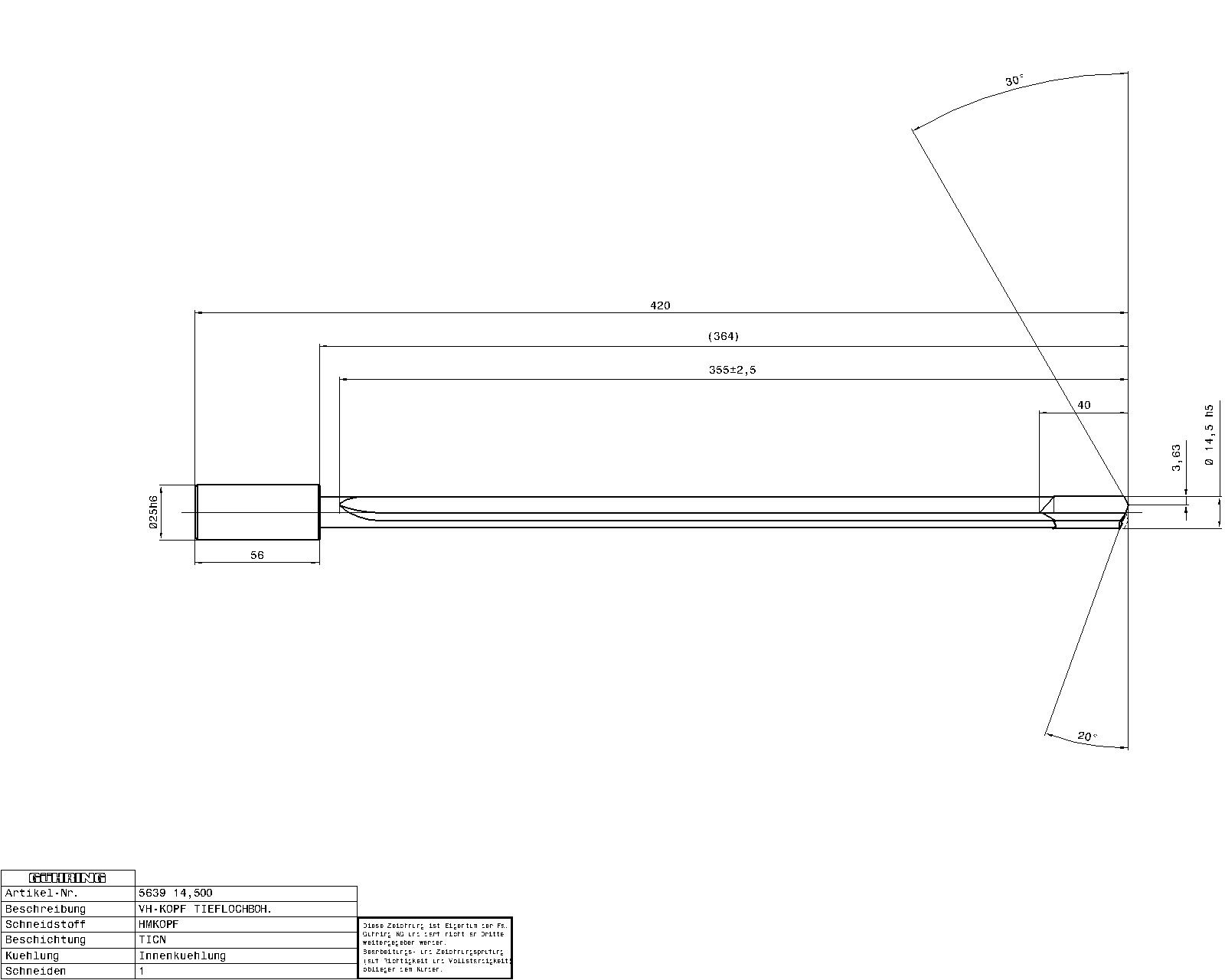

Total length: 420.000
Groove length: 355.000
Shank Ø: 25.000
Shank length: 56.000
Nominal Ø mm: 14.500
Head length: 40.00
Body Ø: 14.000
Statistical goods number: 82075050
