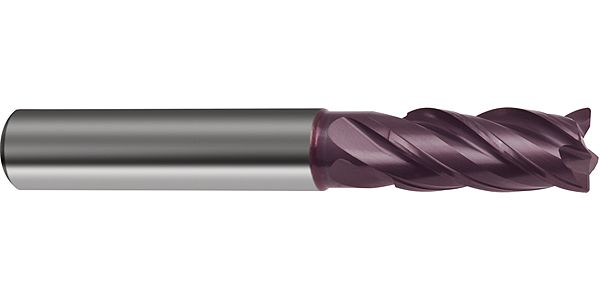

Guhring 20MM RF100 U END MILL 4-FL R2.0

Product Code: 3872 20,020

$638.86$580.78 Ex. GST

Product Code: 3872 20,020 SKU 3872 20,020 Category CUTTING TOOLS (HSS & Carbide)

Guhring 20MM RF100 U END MILL 4-FL R2.0

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Ratio end mills standard RF 100 U / Ø 20.000 mm / h10 / DIN 6527L / Solid carbide / FIRE / Type: N / Form: A / Cutting direction: right-hand /
Execution: re-inforced core • neck clearance • centre cutting

Additional information

Weight	0.427 kg
Dimensions	Length 104cm x Width cm x Depth cm
barcode

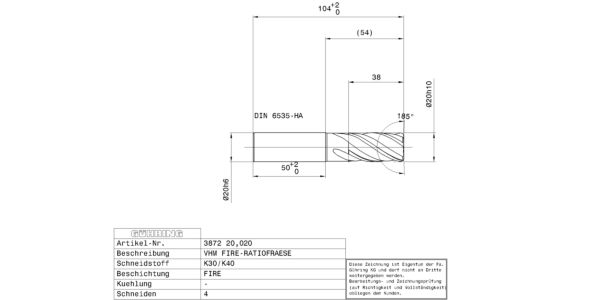

Additional Information	Connection code machine side: DIN 6535-HA Nominal Ø tolerance field: h10 Internal cooling: without Norm: DIN 6527L Surface: FIRE Discount group: 106 Type: 3872 Cutting direction: right-hand Type: N Material: Solid carbide No of cutting edges: 4 Form: A (Variety): ≤ 48 Helix angle: 35/38 Code no.: 20.020 Weight: 0.427 Total length: 104.000 Groove length: 50.000 Usable length: 52.000 Neck Ø: 19.500 Shank Ø: 20.000 Nominal Ø mm: 20.000 Cutting edge length: 38.000 Reach length: 54.000 Radius: 2.000 Statistical goods number: 82077010

Brand

Guhring
