Guhring 3/4-16 UNF Taps HSS-E Yellow band

Product Code: 911 19,050

$243.87$221.70 Ex. GST

Product Code: 911 19,050 SKU 911 19,050 Category CUTTING TOOLS (HSS & Carbide)

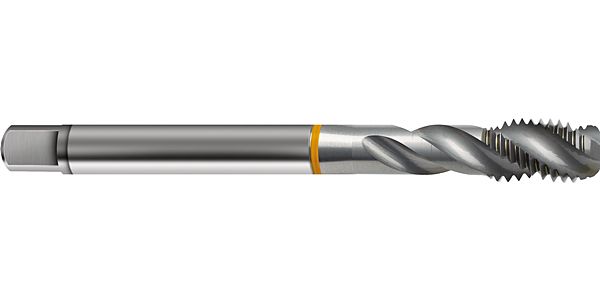

Guhring 3/4-16 UNF Taps HSS-E Yellow band

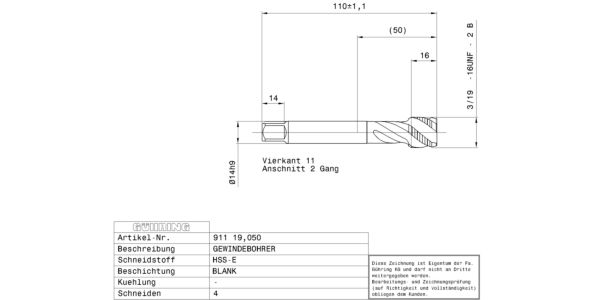

Guhring 3/4-16 UNF Taps HSS-E Yellow band - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for UNF-threads 3/4 – 16 / 2B / 3xD / ~DIN 374 / DIN 2184-1 / HSS-E / bright / Type: N R40 / Form: C / blind hole / Cutting direction: right-hand /
Application: P ≤ 800 N/mm²

Additional information

Weight	0.1300 kg
Dimensions	Length 110cm x Width cm x Depth cm
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: ~DIN 374 Surface: bright Discount group: 103 Type: 911 Cutting direction: right-hand Type: N R40 Material: HSS-E Additional information: Internal threading Form: C Coloured ring: yellow ring Threads: UNF Tolerance class thread: 2B Hole type: blind hole Groove: 40° right hand helix Chamfer lead length: 2-3 Code no.: 19.050 Weight: 0.130 No of cutting edges: 4 Total length: 110.000 Thread length: 16.000 Groove length: 40.000 Usable length: 44.000 Norm 2: DIN 2184-1 Wrench opening 1: 11.000 Neck Ø: 13.800 Core hole Ø: 17.50 Shank Ø: 14.000 Nominal dimension thread: 3/4 – 16 Pitch: 1.587 External Ø: 19.150 Pitch thread/inch: 16.000 Reach length: 50.000 Statistical goods number: 82074010

Brand

Guhring
