Home » Shop » CUTTING TOOLS (HSS & Carbide) » Guhring 3/8-16 UNC 2B PM HSS-E Gun Nose Tap TiN Coated Red Ring

Guhring 3/8-16 UNC 2B PM HSS-E Gun Nose Tap TiN Coated Red Ring

Product Code: 3992 9,525

$133.28$121.16 Ex. GST

Product Code: 3992 9,525 SKU 3992 9,525 Category CUTTING TOOLS (HSS & Carbide)

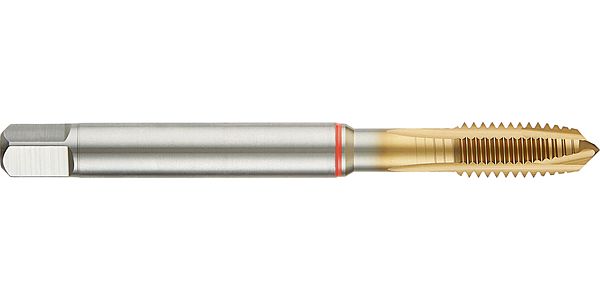

Guhring 3/8-16 UNC 2B PM HSS-E Gun Nose Tap TiN Coated Red Ring

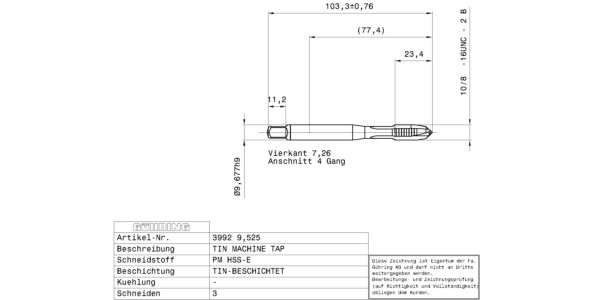

Guhring 3/8-16 UNC 2B PM HSS-E Gun Nose Tap TiN Coated Red Ring - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for UNC-threads 3/8 – 16 / 2B / Company std. / DIN/ANSI / HSS-E-PM / TiN / Type: H / Form: B / through hole / Cutting direction: right-hand

Additional information

Weight	0.0510 kg
Dimensions	Length 100cm x Width cm x Depth cm
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: Company std. Surface: TiN Discount group: 103 Type: 3992 Cutting direction: right-hand Type: H Material: HSS-E-PM Additional information: Internal threading Form: B Coloured ring: red ring Threads: UNC Tolerance class thread: 2B Hole type: through hole Groove: straight-fluted cutting edges Chamfer lead length: 3.5-5.5 Code no.: 9.525 Weight: 0.051 No of cutting edges: 3 Total length: 100.000 Thread length: 20.000 Groove length: 35.000 Usable length: 39.000 Norm 2: DIN/ANSI Wrench opening 1: 7.260 Core hole Ø: 8.00 Shank Ø: 9.677 Nominal dimension thread: 3/8 – 16 External Ø: 9.610 Pitch thread/inch: 16.000 Reach length: 78.000 Statistical goods number: 82074010

Brand

Guhring
