Guhring 3/8-16 UNC 2B PM HSS-E Spiral Tap TiN Coated Red Ring

Product Code: 3993 9,525

$143.67$130.61 Ex. GST

Product Code: 3993 9,525 SKU 3993 9,525 Category CUTTING TOOLS (HSS & Carbide)

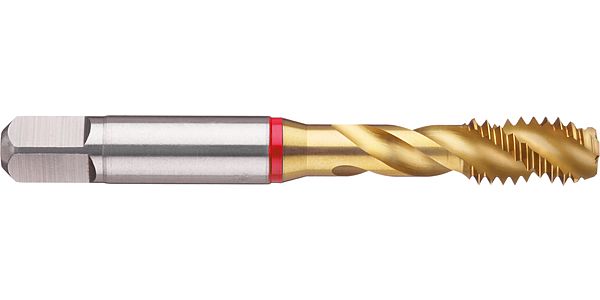

Guhring 3/8-16 UNC 2B PM HSS-E Spiral Tap TiN Coated Red Ring

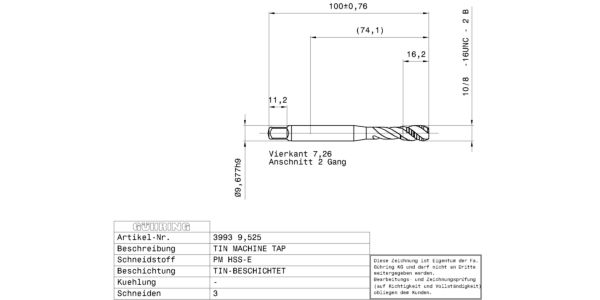

Guhring 3/8-16 UNC 2B PM HSS-E Spiral Tap TiN Coated Red Ring - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for UNC-threads 3/8 – 16 / 2B / Company std. / DIN/ANSI / HSS-E-PM / TiN / Type: H R40 / Form: C / blind hole / Cutting direction: right-hand

Additional information

Weight	0.0480 kg
Dimensions	Length 100cm x Width cm x Depth cm
barcode
Additional Information	Connection Code Machine Side: Straight Shank Internal Cooling: Without Norm: Company Std. Surface: TiN Discount Group: 103 Type: 3993 Cutting Direction: Right-hand Type: H R40 Material: HSS-E-PM Additional Information: Internal Threading Form: C Coloured Ring: Red Ring Threads: UNC Tolerance Class Thread: 2B Hole Type: Blind Hole Groove: 40° Right-hand Helix Chamfer Lead Length: 2-3 Code No.: 9.525 Weight: 0.048 No of Cutting Edges: 3 Total Length: 100 Thread Length: 16 Groove Length: 35 Usable Length: 39 Norm 2: DIN/ANSI Wrench Opening 1: 7.260 Core Hole Ø: 8.00 Shank Ø: 9.677 Nominal Dimension Thread: 3/8 – 16 External Ø: 9.610 Pitch Thread/Inch: 16.000 Reach Length: 78 Statistical Goods Number: 82074010

Brand

Guhring
