Guhring 3/8 – 24 Bottoming UNF Threads HSS

Product Code: 987 9,525

$76.31$69.37 Ex. GST

Product Code: 987 9,525 SKU 987 9,525 Category CUTTING TOOLS (HSS & Carbide)

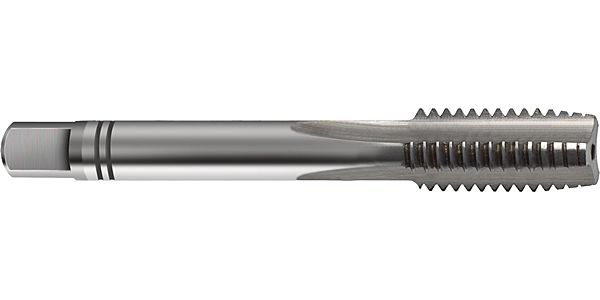

Guhring 3/8 - 24 Bottoming UNF Threads HSS

Guhring 3/8 - 24 Bottoming UNF Threads HSS - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

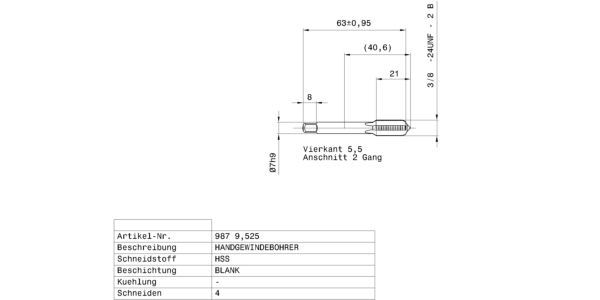

Bottoming tap Hand taps for UNF-threads 3/8 – 24 / 2B / ~DIN 2181 / DIN 2184-2 / HSS / bright / Type: N / Form: C / through-, blind hole / Cutting direction: right-hand /
Application: P ≤ 800 N/mm²

Additional information

Weight	0.0190 kg
Dimensions	Length 63cm x Width cm x Depth cm
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: ~DIN 2181 Surface: bright Discount group: 118 Type: 987 Cutting direction: right-hand Type: N Material: HSS Additional information: Bottoming tap Form: C Coloured ring: yellow ring Threads: UNF Tolerance class thread: 2B Hole type: through-, blind hole Groove: straight-fluted cutting edges Chamfer lead length: 2-3 Code no.: 9.525 Weight: 0.019 No of cutting edges: 4 Total length: 63.000 Thread length: 18.000 Groove length: 28.000 Norm 2: DIN 2184-2 Wrench opening 1: 5.500 Core hole Ø: 8.50 Shank Ø: 7.000 Nominal dimension thread: 3/8 – 24 Pitch: 1.058 External Ø: 9.600 Pitch thread/inch: 24.000 Statistical goods number: 82074010

Brand

Guhring
