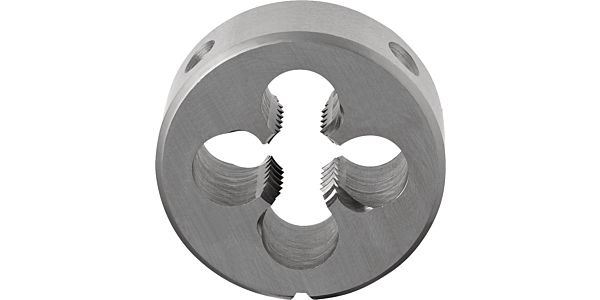

Guhring 3/8 - 24 Dies UNF HSS - Millers Tooling Pty Ltd Shop Online

Description

Dies for UNF-threads 3/8 – 24 / 2a / DIN EN 22568 / HSS / bright / Form: B / Cutting direction: right-hand /
Application: P ≤ 1000 N/mm²

Weight	0.0400 kg
Dimensions	Length 11cm x Width cm x Depth cm
barcode
Additional Information	Tolerance on Ø: 2a Internal Cooling: without Norm: DIN EN 22568 Surface: bright Discount Group: 103 Type: 185 Cutting Direction: right-hand Material: HSS Form: B Threads: UNF Tolerance Class Thread: 2a Chamfer Form: with chamfer Chamfer Lead Length: 1.75xP Code No.: 9.525 Weight: 0.040 No. of Cutting Edges: 4 Total Length: 11.000 Nominal Dimension Thread: 3/8 – 24 Pitch: 1.058 External Ø: 30.000 Pilot Hole Ø Work Piece: 9.410 Pitch Thread/Inch: 24.000 Statistical Goods Number: 82074030
