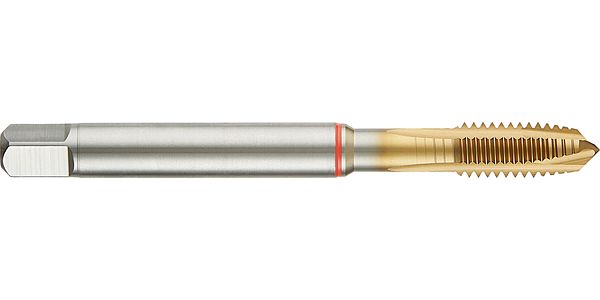

Guhring 3/8-24 UNF 2B PM HSS-E Gun Nose Tap TiN Coated Red Ring

Connection Code Machine Side: Straight Shank
Internal Cooling: Without
Norm: Company Std.
Surface: TiN
Discount Group: 103
Type: 3994
Cutting Direction: Right-hand
Type: H
Material: HSS-E-PM
Additional Information: Internal Threading
Form: B
Coloured Ring: Red Ring
Threads: UNF
Tolerance Class Thread: 2B
Hole Type: Through Hole
Groove: Straight-fluted Cutting Edges
Chamfer Lead Length: 3.5-5.5
Code No.: 9.525
Weight: 0.048
No of Cutting Edges: 3

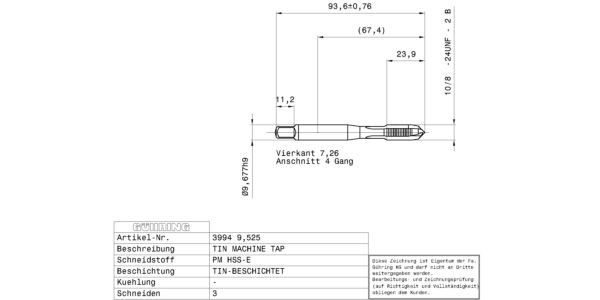

Total Length: 90.000
Thread Length: 20.000
Groove Length: 33.000
Usable Length: 37.000
Norm 2: DIN/ANSI
Wrench Opening 1: 7.260
Core Hole Ø: 8.50
Shank Ø: 9.677
Nominal Dimension Thread: 3/8 – 24
External Ø: 9.600
Pitch Thread/Inch: 24.000
Reach Length: 68.000
Statistical Goods Number: 82074010
