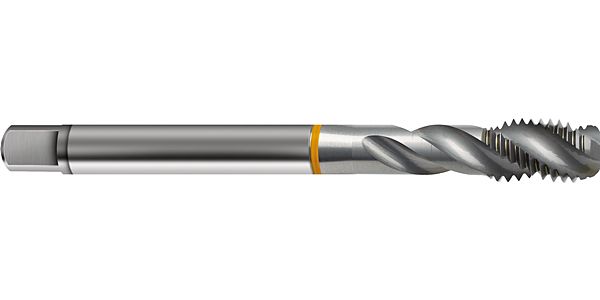

Guhring 3/8-24 UNF Taps HSS-E Yellow band

Product Code: 911 9,525

$112.29$102.08 Ex. GST

Product Code: 911 9,525 SKU 911 9,525 Category CUTTING TOOLS (HSS & Carbide)

Guhring 3/8-24 UNF Taps HSS-E Yellow band

Guhring 3/8-24 UNF Taps HSS-E Yellow band - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for UNF-threads 3/8 – 24 / 2B / 3xD / ~DIN 374 / DIN 2184-1 / HSS-E / bright / Type: N R40 / Form: C / blind hole / Cutting direction: right-hand /
Application: P ≤ 800 N/mm²

Additional information

Weight	0.0250 kg
Dimensions	Length 90cm x Width cm x Depth cm
barcode

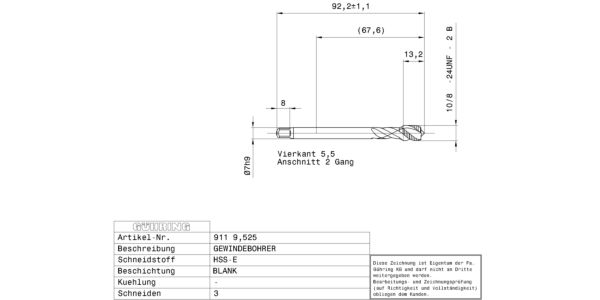

Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: ~DIN 374 Surface: bright Discount group: 103 Type: 911 Cutting direction: right-hand Type: N R40 Material: HSS-E Additional information: Internal threading Form: C Coloured ring: yellow ring Threads: UNF Tolerance class thread: 2B Hole type: blind hole Groove: 40° right hand helix Chamfer lead length: 2-3 Code no.: 9.525 Weight: 0.025 No of cutting edges: 3 Total length: 90.000 Thread length: 11.500 Groove length: 31.000 Usable length: 35.000 Norm 2: DIN 2184-1 Wrench opening 1: 5.500 Core hole Ø: 8.50 Shank Ø: 7.000 Nominal dimension thread: 3/8 – 24 Pitch: 1.058 External Ø: 9.600 Pitch thread/inch: 24.000 Reach length: 68.000 Statistical goods number: 82074010

Brand

Guhring
