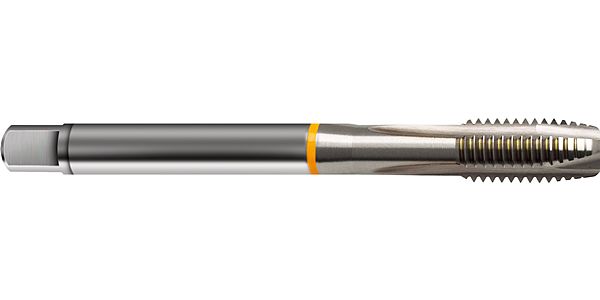

Guhring 3/8 x 24 UNF GunNose Tap HSS-E Yellow band

Product Code: 908 9,525

$102.49$93.17 Ex. GST

Product Code: 908 9,525 SKU 908 9,525 Category CUTTING TOOLS (HSS & Carbide)

Guhring 3/8 x 24 UNF GunNose Tap HSS-E Yellow band

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for UNF-threads 3/8 – 24 / 2B / 3xD / ~DIN 374 / DIN 2184-1 / HSS-E / bright / Type: N / Form: B / through hole / Cutting direction: right-hand /
Application: P ≤ 800 N/mm²

Additional information

Weight	0.026 kg
Dimensions	Length 90cm x Width cm x Depth cm
barcode

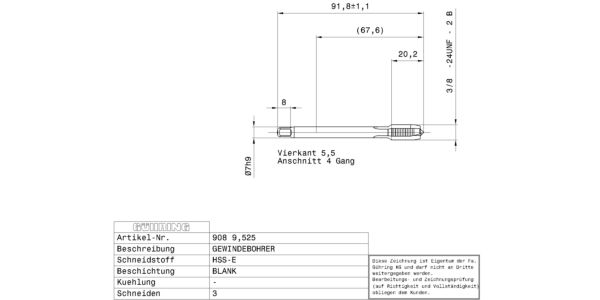

Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: ~DIN 374 Surface: bright Discount group: 103 Type: 908 Cutting direction: right-hand Type: N Material: HSS-E Additional information: Internal threading Form: B Coloured ring: yellow ring Threads: UNF Tolerance class thread: 2B Hole type: through hole Groove: straight-fluted cutting edges Chamfer lead length: 3.5-5,5 Code no.: 9.525 Weight: 0.026 No of cutting edges: 3 Total length: 90.000 Thread length: 18.000 Groove length: 31.000 Usable length: 35.000 Norm 2: DIN 2184-1 Wrench opening 1: 5.500 Core hole Ø: 8.50 Shank Ø: 7.000 Nominal dimension thread: 3/8 – 24 Pitch: 1.058 External Ø: 9.600 Pitch thread/inch: 24.000 Reach length: 68.000 Statistical goods number: 82074010

Brand

Guhring
