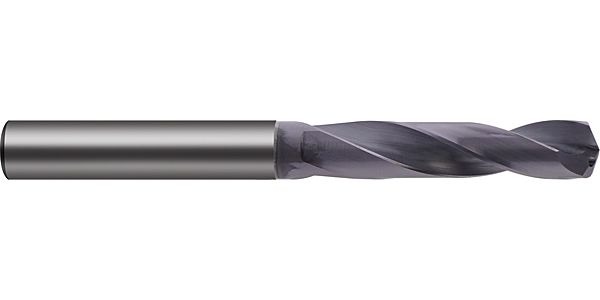

Guhring 3 x D Ratio Drill Thru Cool Carbide TiAlN Coated Stainless Steel

Description

Ratio drills with coolant ducts Solid carbide / Ø 8.800 mm m7 / 3xD / DIN 6537K / Surface: TiAlN-nanoA / Cutting direction: right-hand / facet point grinding 140°
Execution: Web thinning ≥ Ø 3.000 mm • facet point grind • main cutting edge form straight • optimised cutting edge geometry
Application: stainless/acid-/heat-resistant steels • Titanium and Titanium alloys • Inconel, Hastelloy, Monel

Additional information

Weight	0.12 kg
Dimensions	Length 89cm x Width cm x Depth cm
barcode

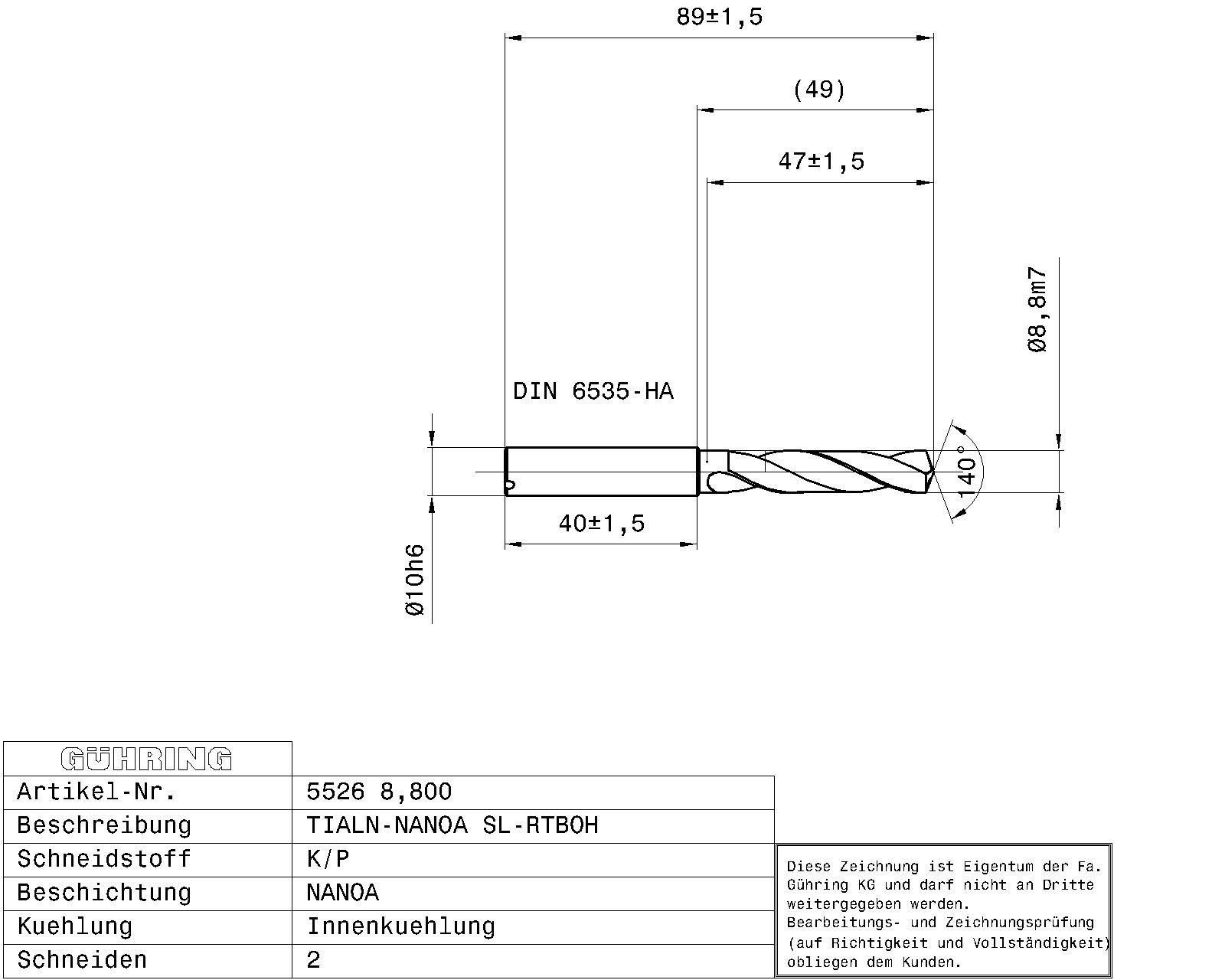

Additional Information	Point grinding: Facet point grinding Connection code machine side: DIN 6535-HA Ø-Thinning: 3.000 Nominal Ø tolerance field: m7 Internal cooling: With Norm: DIN 6537K Surface: TiAlN-nanoA Discount group: 155 Type: 5526 Cutting direction: Right-hand Type (RT): RT 100 VA Point angle: 140 Material: Solid carbide Code no.: 8.800 Weight: 0.120 No of cutting edges: 2 Total length: 89.000 Groove length: 47.000 Usable length: 35.000 Shank Ø: 10.000 Shank length: 40.000 Nominal Ø mm: 8.800 Statistical goods number: 82075050
