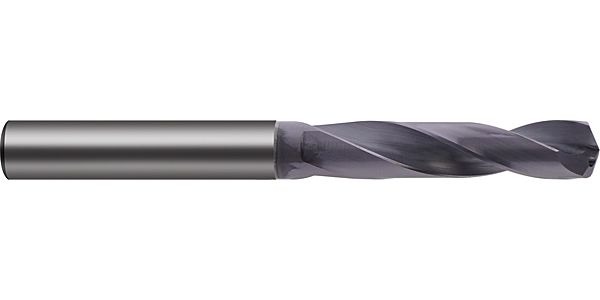

Guhring 3 x D Ratio Drill Thru Cool Carbide TiAlN Coated Stainless Steel 13/32

Point grinding: Facet point grinding
Connection code machine side: DIN 6535-HA
Ø-Thinning: 3.000
Nominal Ø tolerance field: m7
Internal cooling: With
Norm: DIN 6537K
Surface: TiAlN-nanoA
Discount group: 155
Type: 5526
Cutting direction: Right-hand
Type (RT): RT 100 VA
Point angle: 140
Material: Solid carbide
Code no.: 10.320
Weight: 0.112
No of cutting edges: 2
Total length: 102.000
Groove length: 55.000
Usable length: 40.000
Shank Ø: 12.000
Shank length: 45.000
Nominal Ø mm: 10.320
Nominal Ø fractional: 13/32
Statistical goods number: 82075050
