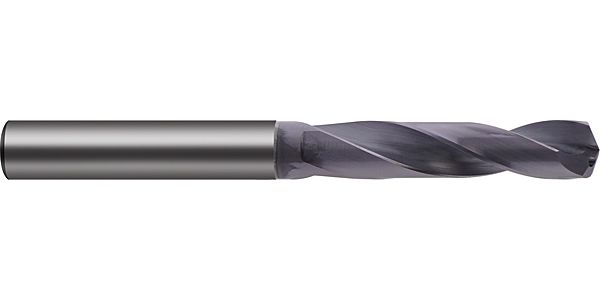

Guhring 3 x D Ratio Drill Thru Cool Carbide TiAlN Coated Stainless Steel

Description

Ratio drills with coolant ducts Solid carbide / Ø 16.000 mm m7 / 3xD / DIN 6537K / Surface: TiAlN-nanoA / Cutting direction: right-hand / facet point grinding 140°
Execution: Web thinning ≥ Ø 3.000 mm • facet point grind • main cutting edge form straight • optimised cutting edge geometry
Application: stainless/acid-/heat-resistant steels • Titanium and Titanium alloys • Inconel, Hastelloy, Monel

Additional information

Weight	0.245 kg
Dimensions	Length 115cm x Width cm x Depth cm
barcode

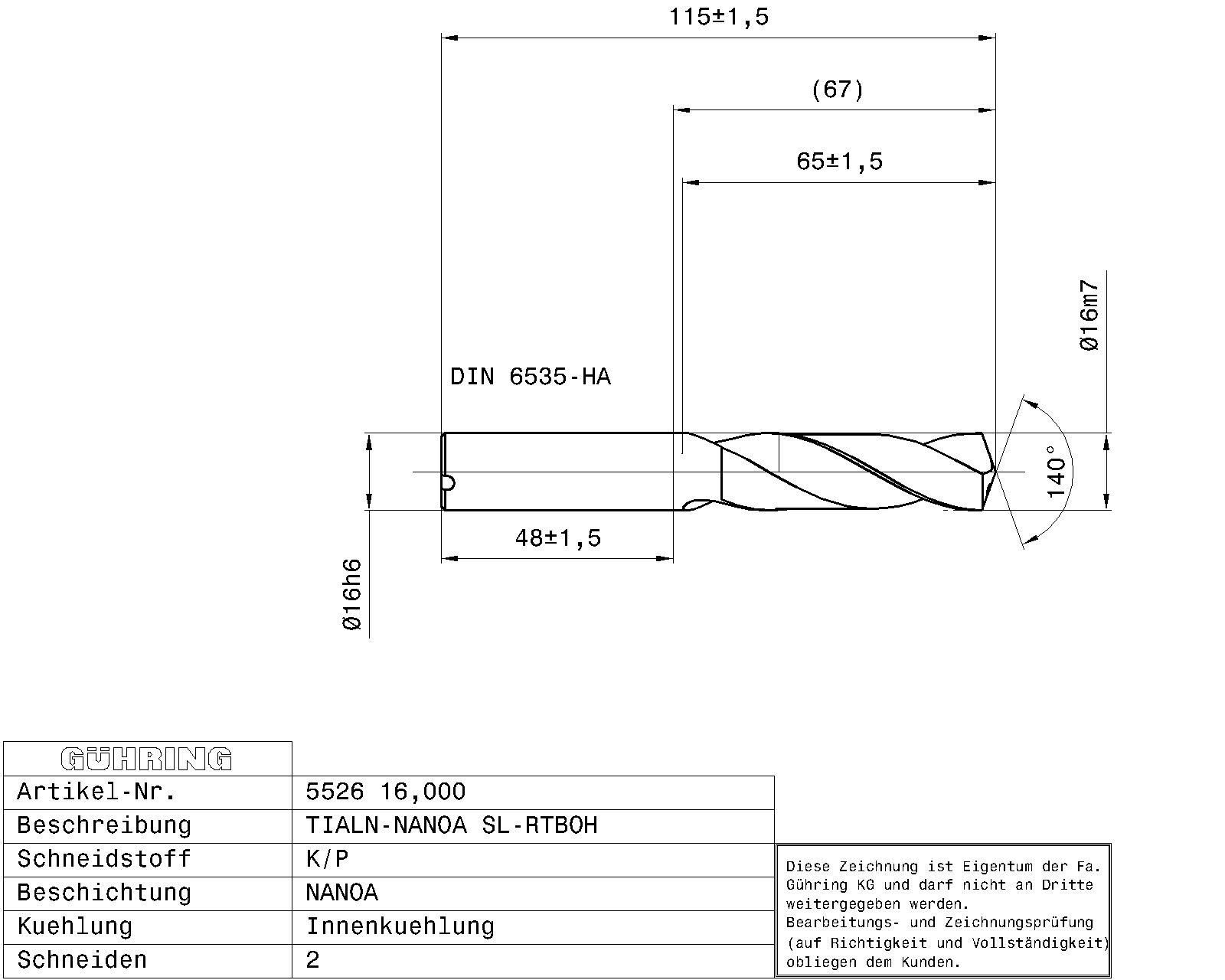

Additional Information	Point grinding: Facet point grinding Connection code machine side: DIN 6535-HA Ø-Thinning: 3.000 Nominal Ø tolerance field: m7 Internal cooling: with Norm: DIN 6537K Surface: TiAlN-nanoA Discount group: 155 Type: 5526 Cutting direction: right-hand Type: RT 100 VA Point angle: 140 Material: Solid carbide Code no.: 16.000 Weight: 0.245 No of cutting edges: 2 Total length: 115.000 Groove length: 65.000 Usable length: 45.000 Shank Ø: 16.000 Shank length: 48.000 Nominal Ø mm: 16.000 Statistical goods number: 82075050
