Home » Shop » CUTTING TOOLS (HSS & Carbide) » Guhring 5/16 – 18 3pce Hand Tap Set UNC Threads HSS

Guhring 5/16 – 18 3pce Hand Tap Set UNC Threads HSS

Product Code: 981 7,938

$191.40$174.00 Ex. GST

Product Code: 981 7,938 SKU 981 7,938 Category CUTTING TOOLS (HSS & Carbide)

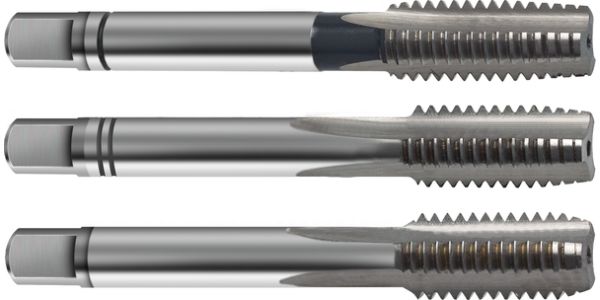

Guhring 5/16 - 18 3pce Hand Tap Set UNC Threads HSS

Guhring 5/16 - 18 3pce Hand Tap Set UNC Threads HSS - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Set Hand taps for UNC-threads 5/16 – 18 / 2B / ~DIN 352 / DIN 2184-2 / HSS / bright / Type: N / through-, blind hole / Cutting direction: right-hand /
Application: P ≤ 800 N/mm²

Additional information

Weight	0.0400 kg
Dimensions	Length 63cm x Width cm x Depth cm
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: DIN 352 Surface: bright Discount group: 118 Type: 981 Cutting direction: right-hand Type: N Material: HSS Additional information: Set Threads: UNC Tolerance class thread: 2B Hole type: through-, blind hole Code no.: 7.938 Weight: 0.040 Number of parts per set: 3.00 No of cutting edges: 4 Total length: 63.000 Thread length: 18.000 Groove length: 28.000 Norm 2: DIN 2184-2 Wrench opening 1: 4.900 Core hole Ø: 6.60 Shank Ø: 6.000 Nominal dimension thread: 5/16 – 18 Pitch: 1.411 Pitch thread/inch: 18.000 Statistical goods number: 82074010

Brand

Guhring
