Guhring 5/16-24 UNF Taps HSS-E Yellow band

Product Code: 911 7,938

$110.08$100.07 Ex. GST

Product Code: 911 7,938 SKU 911 7,938 Category CUTTING TOOLS (HSS & Carbide)

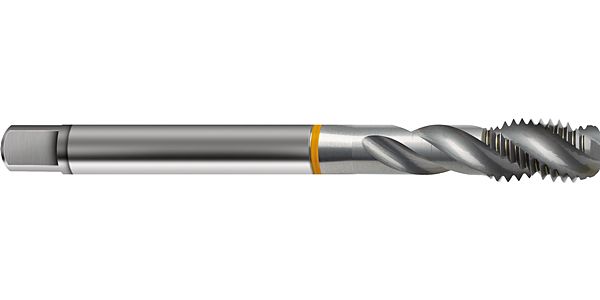

Guhring 5/16-24 UNF Taps HSS-E Yellow band

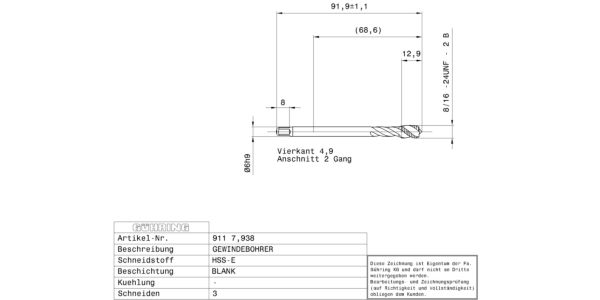

Guhring 5/16-24 UNF Taps HSS-E Yellow band - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine taps for UNF-threads 5/16 – 24 / 2B / 3xD / ~DIN 374 / DIN 2184-1 / HSS-E / bright / Type: N R40 / Form: C / blind hole / Cutting direction: right-hand /
Application: P ≤ 800 N/mm²

Additional information

Weight	0.0240 kg
Dimensions	Length 90cm x Width cm x Depth cm
barcode
Additional Information	Connection code machine side: straight shank Internal cooling: without Norm: ~DIN 374 Surface: bright Discount group: 103 Type: 911 Cutting direction: right-hand Type: N R40 Material: HSS-E Additional information: Internal threading Form: C Coloured ring: yellow ring Threads: UNF Tolerance class thread: 2B Hole type: blind hole Groove: 40° right hand helix Chamfer lead length: 2-3 Code no.: 7.938 Weight: 0.024 No of cutting edges: 3 Total length: 90.000 Thread length: 11.500 Groove length: 31.000 Usable length: 35.000 Norm 2: DIN 2184-1 Wrench opening 1: 4.900 Core hole Ø: 6.90 Shank Ø: 6.000 Nominal dimension thread: 5/16 – 24 Pitch: 1.058 External Ø: 8.010 Pitch thread/inch: 24.000 Reach length: 69.000 Statistical goods number: 82074010

Brand

Guhring
