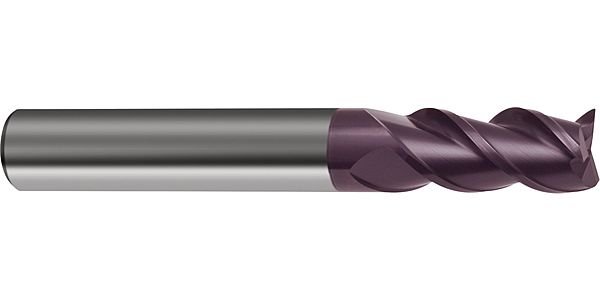

Guhring 5/16 Endmill 3 Flute Carbide Fire Coat

Description

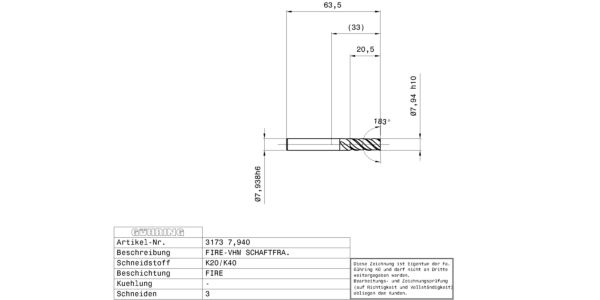

Slot drills GH 100 U (3-fluted) / Ø 7.938 mm / h10 / Company std. / Solid carbide / FIRE / Type: NH / Cutting direction: right-hand

Weight	0.0410 kg
Dimensions	Length 63.5cm x Width cm x Depth cm
barcode
Additional Information	Connection code machine side: ~DIN 6535-HA Nominal Ø tolerance field: h10 Internal cooling: Without Norm: Company std. Surface: FIRE Discount group: 106 Type: 3173 Cutting direction: Right-hand Type: NH Material: Solid carbide No of cutting edges: 3 Helix angle: 45 Code no.: 7.940 Weight: 0.041 Total length: 63.500 Groove length: 27.500 Usable length: 27.500 Shank Ø: 7.938 Nominal Ø mm: 7.938 Nominal Ø fractional: 5/16 Cutting edge length: 20.500 Reach length: 33.000 Corner chamfer: 0.120 Statistical goods number: 82077010
